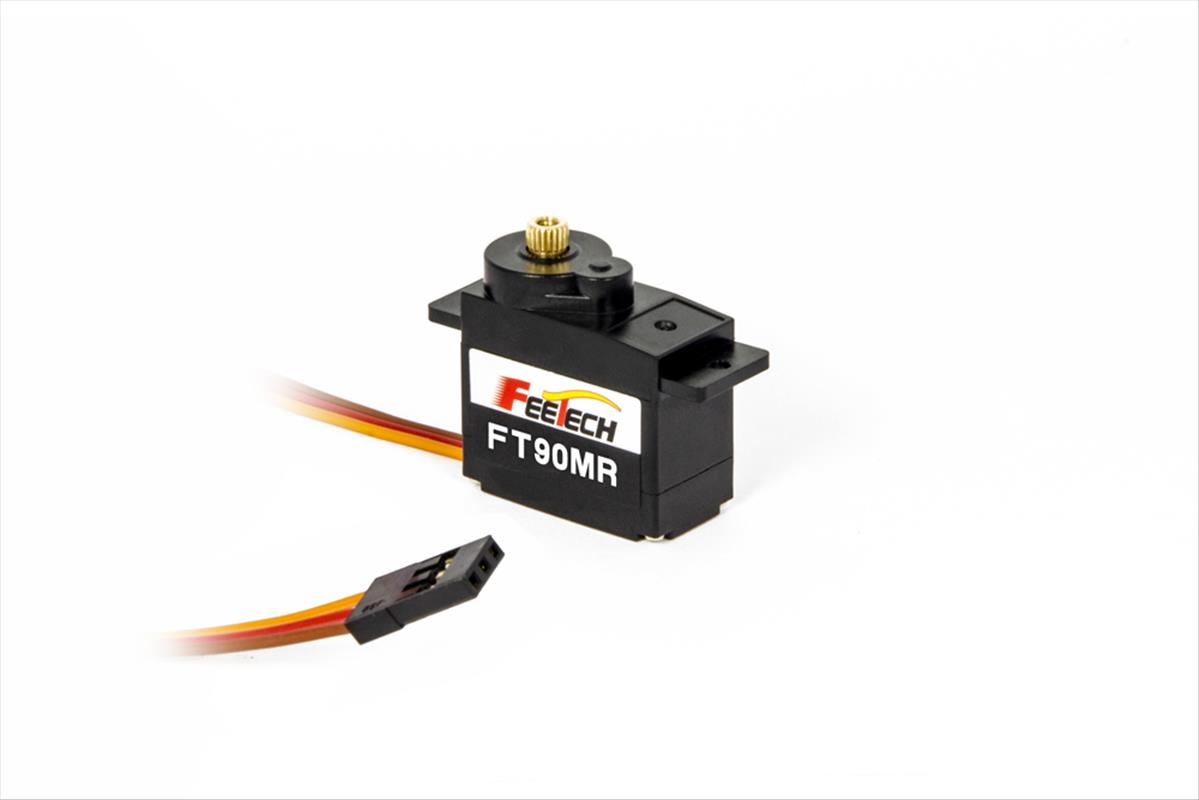

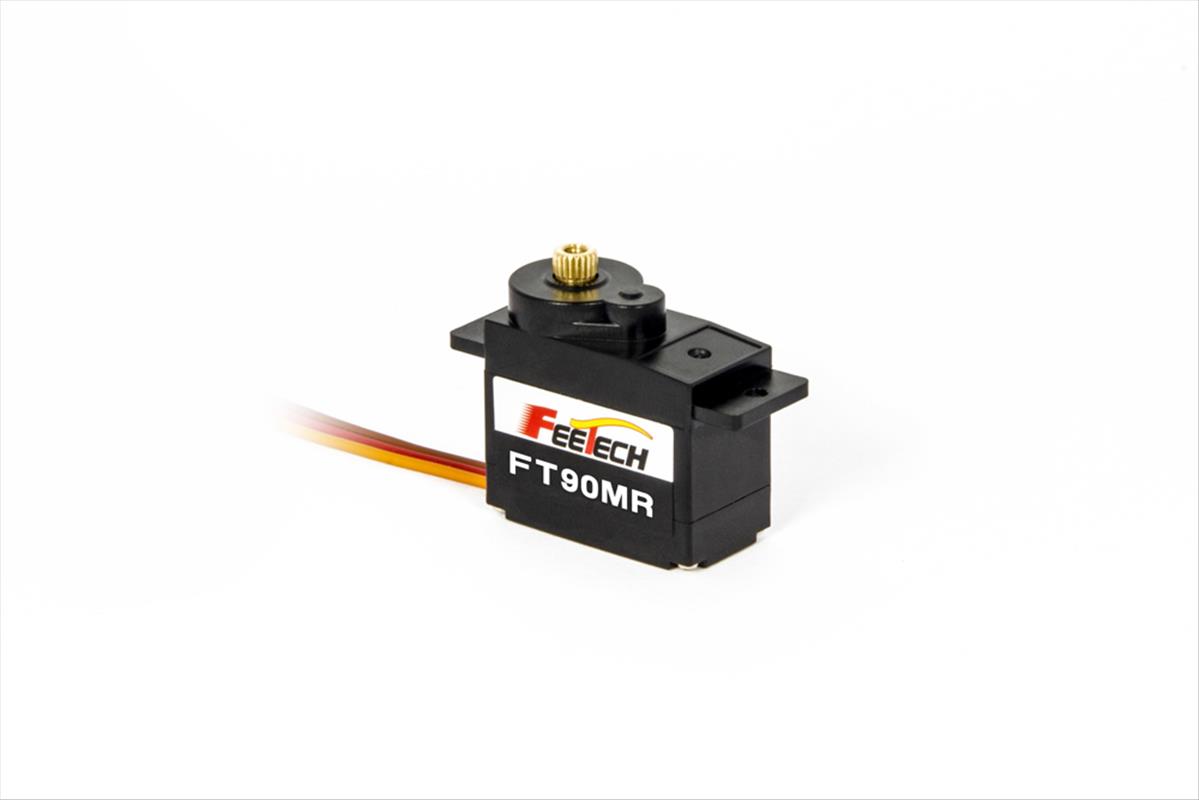

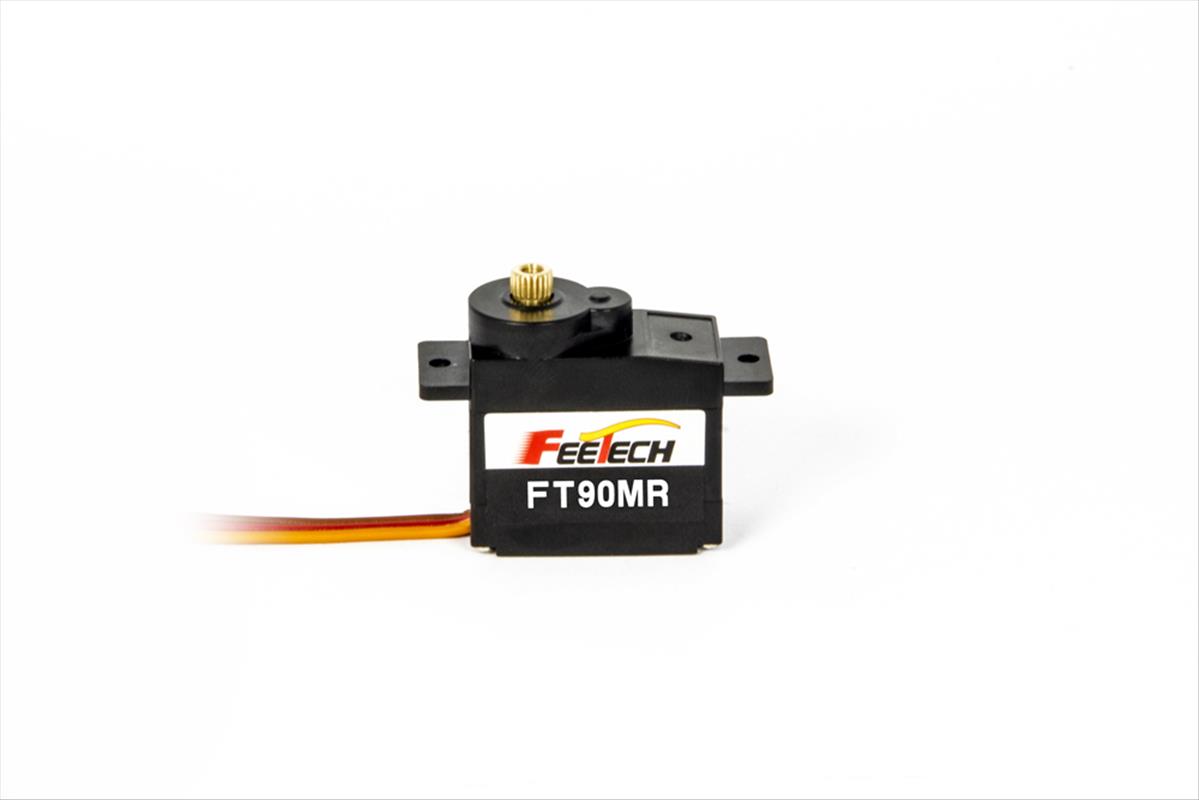

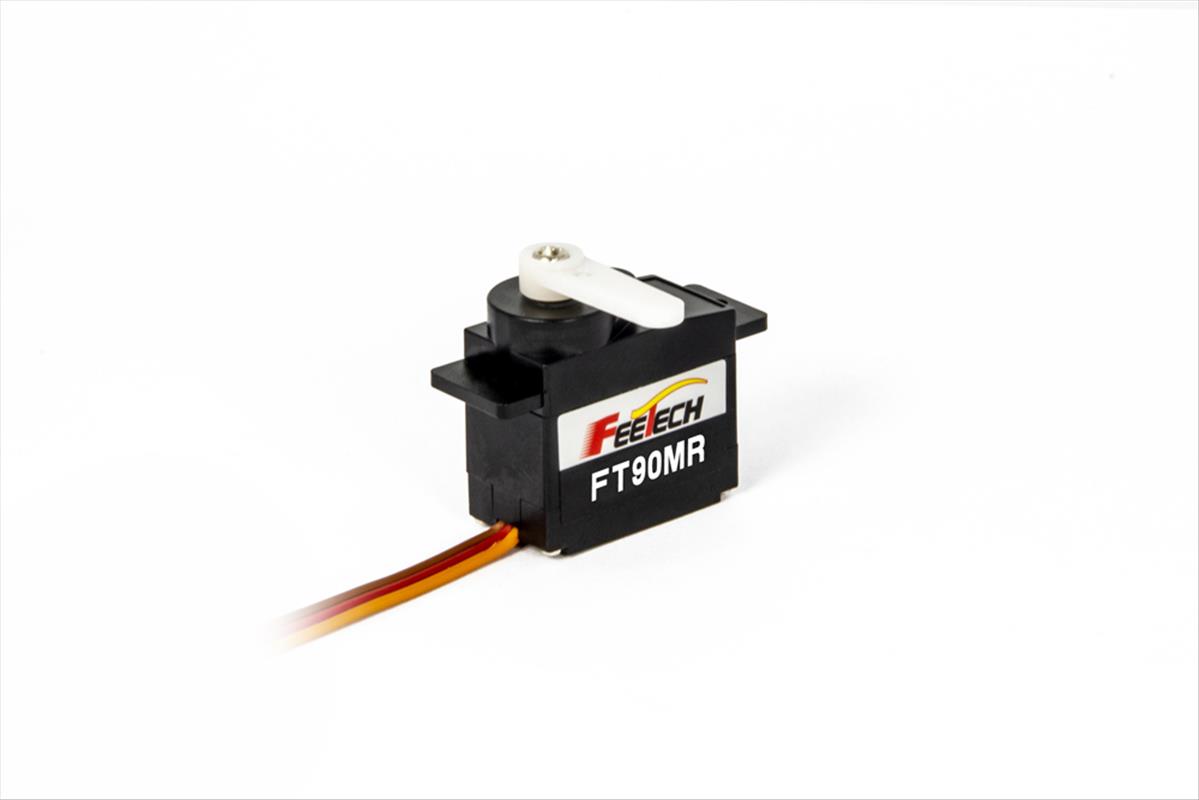

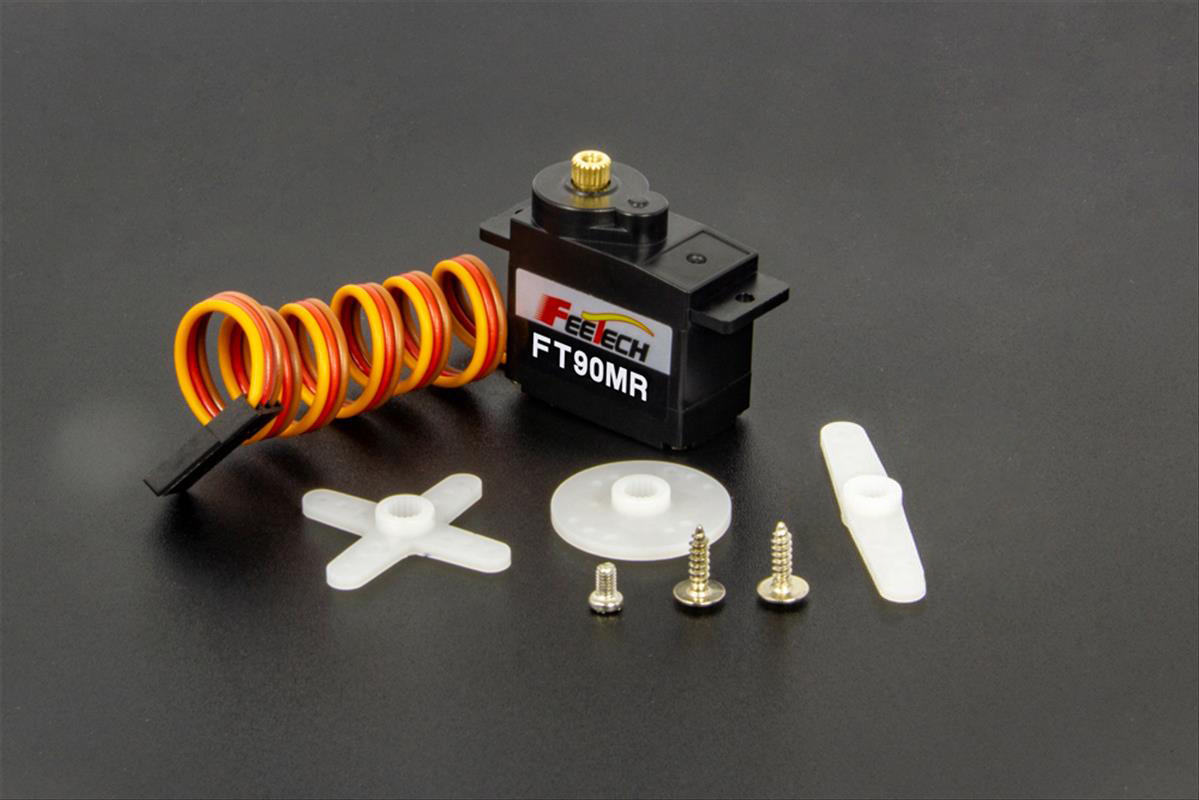

2kg Continuous Rotation Servo FT90MR
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FT90MR
Structure Size:23.2X12.1X25.25mm
The Maximum Speed:0.07sec/60degree@6V
The Stall Torque:800mA@6V
The Rotation Degree:160°
Product details
|
型 号 Model： |
FT90MR |
|
产品名称 Product Name: |
6V 2kg 360度连续转数字舵机/6V 1.8kg. cm Digital Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -10℃～70℃ |
|
尺寸 Size: |
A：23.2mm B：12.1mm C:25.5mm |
|
重量 Weight: |
12.5g |
| 齿轮类型 Gear type: |
Metal Gear |
| 机构极限角度 Limit angle: |
NO limit |
| 轴承 Bearing: | NO Ball bearings |
| 出力轴 Horn gear spline: |
20T |
| 摆臂 Horn type: | Plastic,POM |
| 外壳 Case: |
ABS |
| 舵机线 Connector wire: | 250mm |
| 马达 Motor: |
coremotor |
|
工作电压Operating Voltage Range: |
3-6V |
| 静态电流Idle current (at stopped) . | 5mA-6mA |
|
空载速度 No load speed: |
100RPM @6V |
| 空载电流 Runnig current(at no load) : | 150 mA@6V |
|
堵转扭矩 Peak stall torque: |
2.15kg.cm@6V |
|
额定扭矩 Rated torque: |
0.71kg.cm@6V |
| 堵转电流 Stall current: | 1000mA@6V |
| 控制信号Command si gnal | Pulse width modification |
| 放大器类型Amplifier type | Digitalcompara tor |
| 脉冲宽度范围Pulse width range | 900~2100usec |
| 中立位置Stop position | 1500 sec |
| 旋转角度Running degree |
360° Continuous Rotation |
| 死区宽度Dead band width | +/-25 μsec |
| 旋转方向Rotating direction |
CCW(when 1500~ 2500 μsec) |
| 详细规格书下载Download detailed specifications: | |

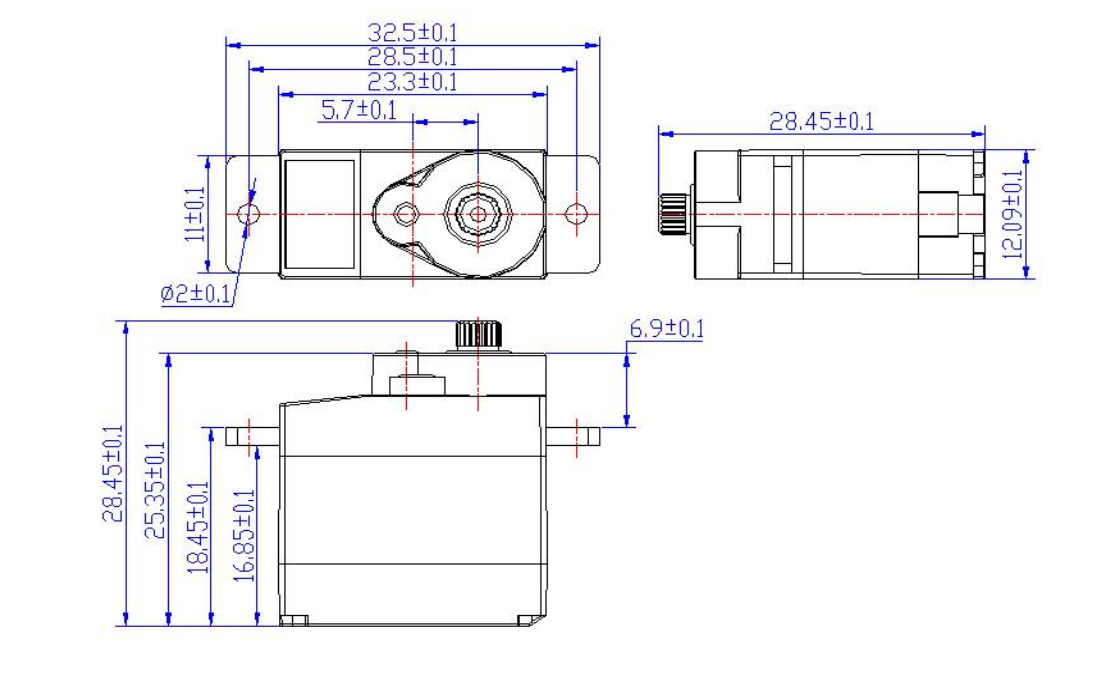

| 外形图 The Drawings: |
