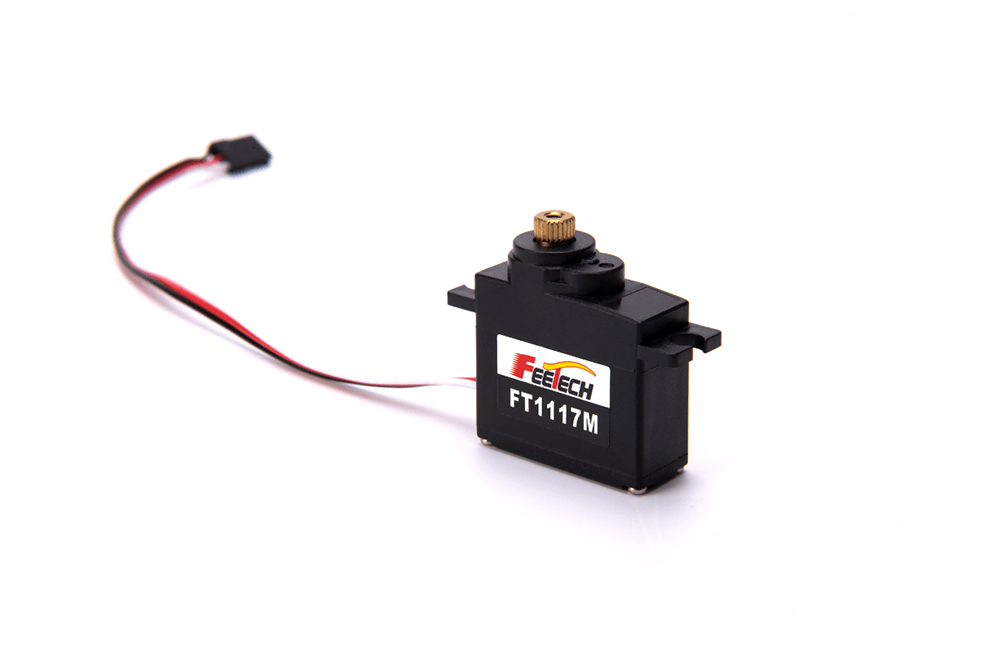

6V 3.5kg.cm analog servo FT1117M
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FT1117M
Structure Size:30*12*31.7mm
The Maximum Speed:0.11sec/60°@6V
The Stall Torque:3.5kg. cm@6V
The Rotation Degree:120°(when 900～2100 μ sec)
Product details
|
型 号 Model： |
FT1117M |
|
产品名称 Product Name: |
6V 3.5kg模拟舵机/6V 3.5kg.cm analog servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -15℃～70℃ |
|
尺寸 Size: |
A：30mm B：12mm C: 31.7mm |
|
重量 Weight: |
20.5g ±0.2 |
| 齿轮类型 Gear type: |
Metal Gear |
| 机构极限角度 Limit angle: |
200degree |
| 轴承 Bearing: | NO Ball bearings |
| 出力轴 Horn gear spline: |
25T(5.8mm) |
| 外壳 Case: | ABS |
| 舵机线 Connector wire: | 200mm ±5 mm |
| 马达 Motor: |
Core Motor |
|
工作电压Operating Voltage Range: |
4.8-6V |
| 静态电流Idle current (atstopped) |
6mA@6V |
|
空载速度 No load speed: |
0.11sec/60°@6V |
| 空载电流 Runnig current(at no load) : | 150mA@6V |
|
堵转扭矩 Peak stall torque: |
3.5kg.cm@6V |
|
额定扭矩 Rated torque: |
1.16kg.cm@6V |
| 堵转电流 Stall current: | 800mA@6V |
| 控制信号Command si gnal | Pulse width modification |
| 放大器类型Amplifier type | Analog comparator |
| 脉冲宽度范围Pulse width range | 900~2100 μ sec |
| 中立位置Stop position | 1500 μ sec |
| 旋转角度Running degree |
120°(when 900～2100 μ sec) |
| 死区宽度Dead band width | 2 μ sec |
| 旋转方向Rotating direction | CW(when 1500～900 µsec) CCW(when 1500～2100 µsec) |
| 详细规格书下载Download detailed specifications: | |

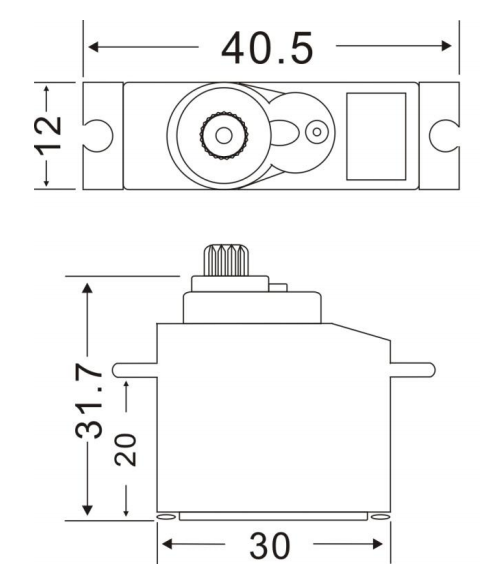

| 外形图 The Drawings: |
