6V 3.0kg.cm120 degree steel gear steering servo
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FT2304M
Structure Size:23.5*8*23.4mm
The Maximum Speed:0.08sec/60°@6V
The Stall Torque:3.2kg. cm@6V
The Rotation Degree:120°
Product details
|
型 号 Model： |
FT2304M |
|
产品名称 Product Name: |
6V 3.0kg.cm数码120度铝壳钢齿轮空芯杯舵机 |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -20℃～60℃ |
|
尺寸 Size: |
A：23.5mm B：8mm C: 23.4mm |
|
重量 Weight: |
11± 1g |
| 齿轮类型 Gear type: |
Metal Gear |
| 机构极限角度 Limit angle: |
NO limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: |
15T/3.9mm |
| 减速比Gear Ratio： | 1/293 |
| 外壳 Case: | PA+Aluminum |
| 舵机线 Connector wire: | 18CM |
| 马达 Motor: |
Coreless Motor |
|
工作电压Operating Voltage Range: |
3.5V-8.4V |
| 静态电流Idle current (atstopped) |
10MA@6V |
|
空载速度 No load speed: |
0.08sec/60°@6V |
| 空载电流 Runnig current(at no load) : | 60mA@6V |
|
堵转扭矩 Peak stall torque: |
3.2kg.cm@6V |
|
额定扭矩 Rated torque: |
1.0kg.cm@6V |
| 堵转电流 Stall current: | 1.2A@6V |
| 控制信号Command si gnal | Pulse width modification |
| 放大器类型Amplifier type | Digital comparator |
| 脉冲宽度范围Pulse width range | 800~2200 μ sec |
| 中立位置Stop position | 1500 μ sec |
| 旋转角度Running degree |
120°(at 800→2200μsec) |
| 死区宽度Dead band width | ≤4 μ sec |
| 旋转方向Rotating direction | 逆时针 Counterclockwi se (在1500→2000 μ sec) |
| 详细规格书下载Download detailed specifications: | |

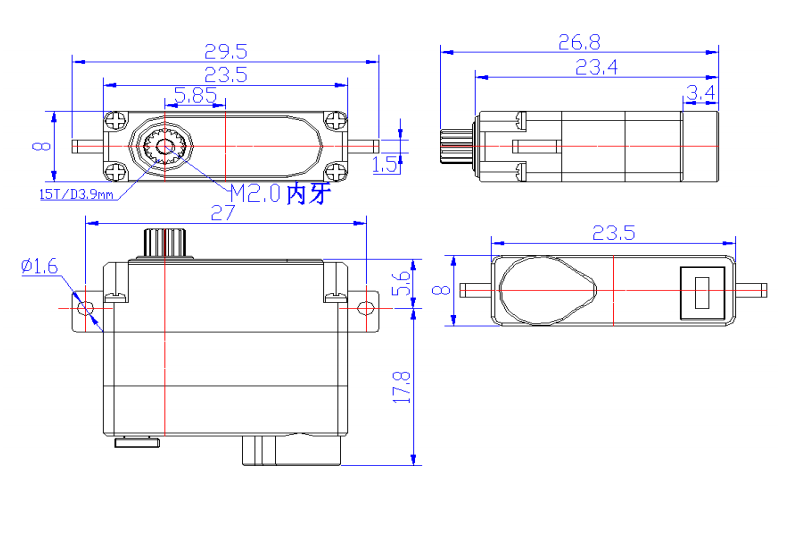

| 外形图 The Drawings: |
