12V 6kg digital servo FB2306BL
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FB2306BL
Structure Size:30.2*14.6*31.5
The Maximum 0.072 sec/60°@12V
The Stall Torque:6kg.cm@12V
The Rotation Degree:90°
Product details
|
型 号 Model： |
FB2306BL |
|
产品名称 Product Name: |
12V 6公斤数码舵机/12V 6kg- -cm Digital Servo |
| 存储温度 Storage Temperature Range | -40℃～80℃ |
| 运行温度 Operating Temperature Range: | -40℃～60℃ |
|
尺寸 Size: |
A：30.2mm B：14.6mm C：31.5mm . |
|
重量 Weight: |
42.5g± 1g |
| 齿轮类型 Gear type: | 钢 Steel |
| 机构极限角度 Limit angle: |
No limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: | 25T/4.95mm |
| 摆臂 Horn type: | 0° |
| 外壳 Case: | Aluminium |
| 舵机线 Connector wire: | 26±1CM |
| 马达 Motor: | Brushless Motor |
|
工作电压Operating Voltage Range: |
6-14V |
| 静态电流Idle current (at stopped) . | 35mA@12V |
|
空载速度 No load speed: |
0.072sec/60°(140RPM)@12V |
| 空载电流 Runnig current(at no load) : | 110mA@12V |
|
堵转扭矩 Peak stall torque: |
6kg.cm@12V |
|
额定扭矩 Rated torque: |
2kg.cm@12V |
| 堵转电流 Stall current: | 1.25A@12V |
| 控制信号Command si gnal | Pulse width modification |
| 控制系统类型 Control System Type | Digital comparator |
| 脉冲宽度范围Pulse width range | 1000~2000usec |
| 中立位置 Neutral Position | 1500 μsec |
| 旋转角度Running degree | 90° (at 1000→2000μsec) |
| 死区宽度Dead band width | ≤4 μsec |
| 反馈电压 Feedback Voltage |
1000us→0.31V 1500us→1.64V 2000us→3.05V |
| 旋转方向Rotating direction | 顺时针 Clockwise(在1000→2000 μsec) |
| 详细规格书下载Download detailed specifications: | |

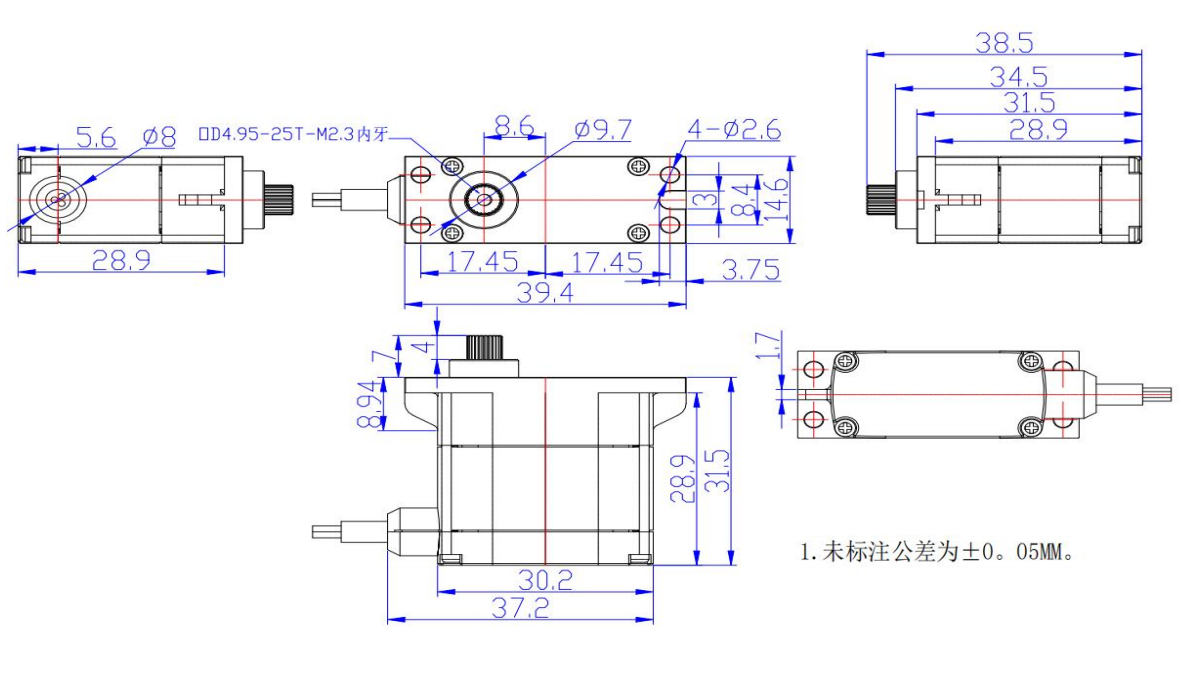

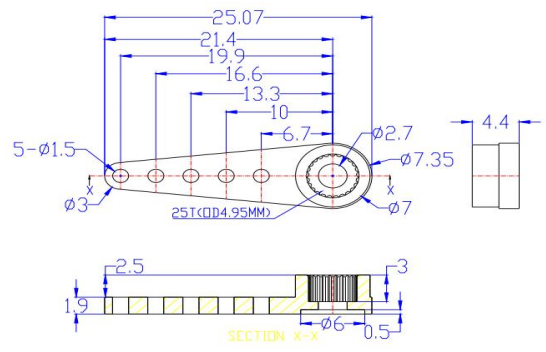

| 外形图 The Drawings: |
