6V 7kg.cm120 Degree Digital Servo FT3325P
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FT3325P
Structure Size:30*10*35.5mm
The Maximum 0.13sec/60degree@6V
The Stall Torque:5.8 kg.cm@6V
The Rotation Degree:120°
Product details
|
型 号 Model： |
FT3325P |
|
产品名称 Product Name: |
6V |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -15℃～70℃ |
|
尺寸 Size: |
A：30mm B：10mm C：35.5mm . |
|
重量 Weight: |
26.2± 1g |
| 齿轮类型 Gear type: | Metal Gear |
| 机构极限角度 Limit angle: |
No limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: | 25T |
| 外壳 Case: | ABS |
| 舵机线 Connector wire: | 15CM |
| 马达 Motor: | Core Motor |
|
工作电压Operating Voltage Range: |
6-8.4V |
| 静态电流Idle current (at stopped) . | 6mA@6V |
|
空载速度 No load speed: |
0.13sec/60degree(105RPM)@6V |
| 空载电流 Runnig current(at no load) : | 150mA@6V |
|
堵转扭矩 Peak stall torque: |
5.8kg.cm@6V |
|
额定扭矩 Rated torque: |
1.9kg.cm@6V |
| 堵转电流 Stall current: | 1000mA@6V |
| 控制信号Command si gnal | Pulse width modification |
| 放大器类型Amplifier type | Digital Comparator |
| 脉冲宽度范围Pulse width range | 900→2100 μsec |
| 中位位置Stop position | 1500 μsec |
| 旋转角度Running degree | 120°(at 900→2100μsec) |
| 死区宽度Dead band width | 2 μsec |
| 旋转方向Rotating direction | 逆时针 Counterclockwise(在1000→2000 μsec) |
| 详细规格书下载Download detailed specifications: | |

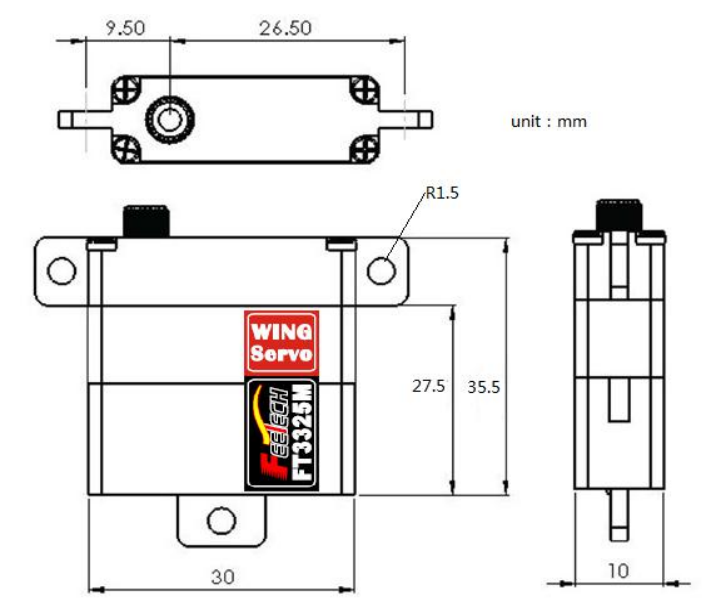

| 外形图 The Drawings: |
7kg.cm数码120度舵机/6V
