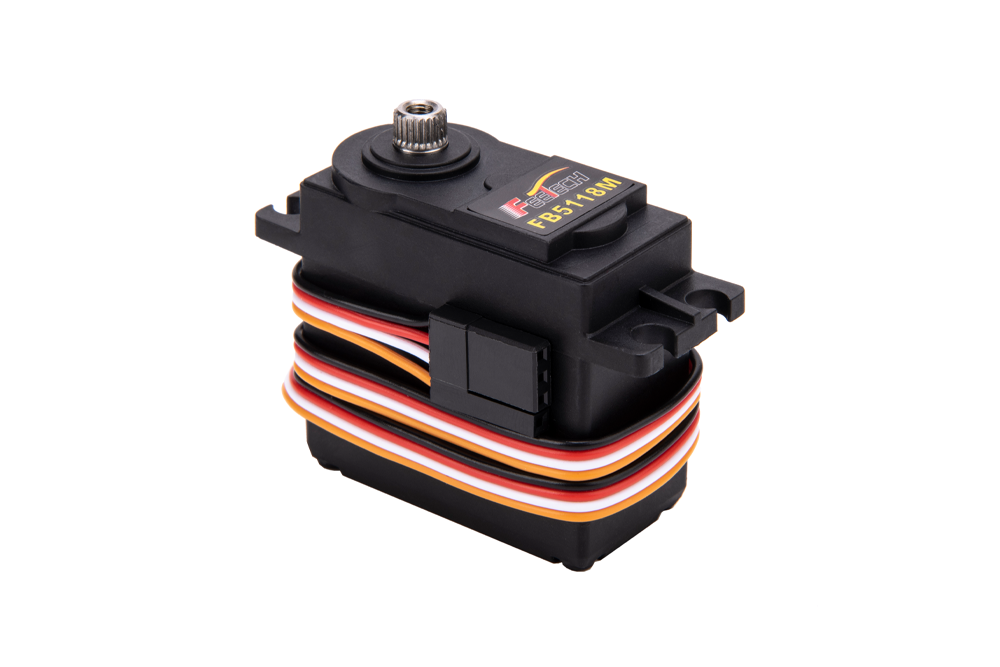

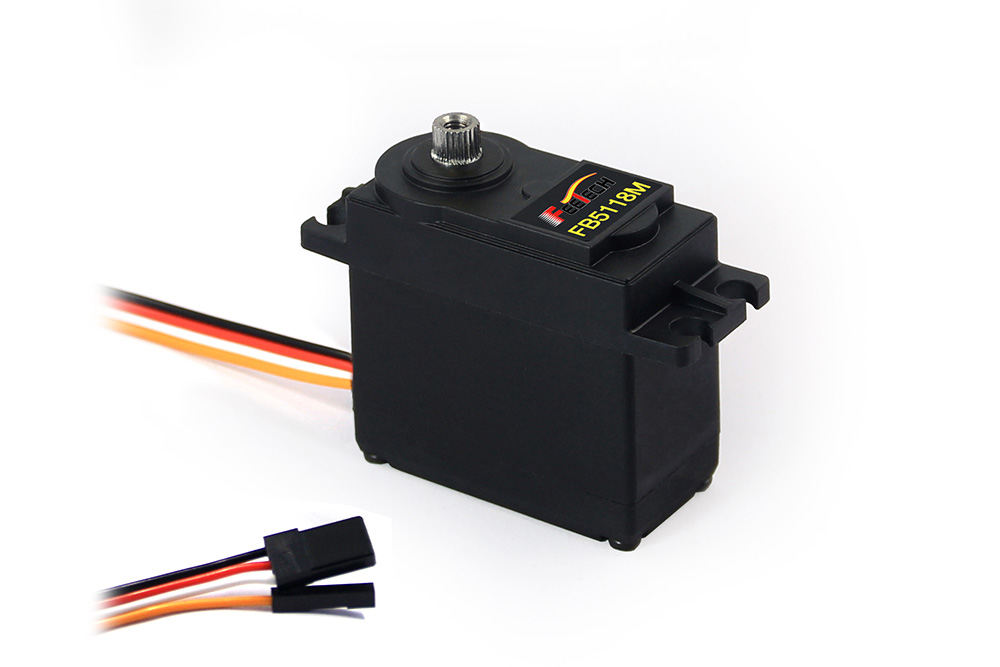

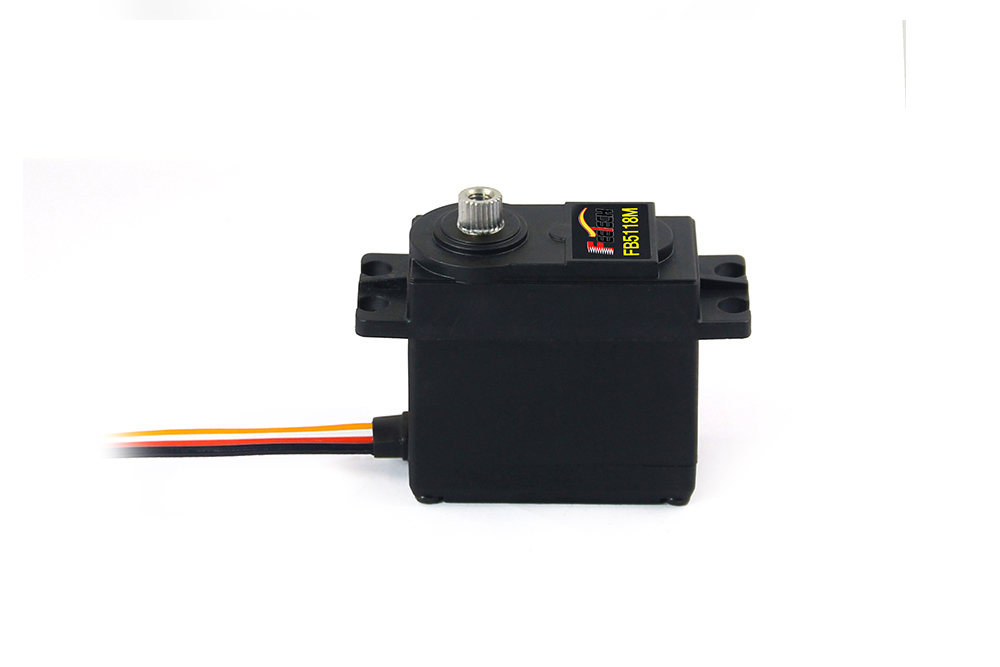

17kg digital servo with feedback FB5118M
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FB5118M
Structure Size:40.1*20.1*38.9mm
Product Weight:65± 1g
The Maximum Speed:0.167sec/60°@7.4V
The Stall Torque:17.5kg.cm@7.4V
The Rotation Degree:300°
Product details
|
型 号 Model： |
FB5118M |
|
产品名称 Product Name: |
7.4V 17公斤数字舵机/7.4V 17kg.cm Digital Servo |
| 配套双模式切换板Supporting dual-mode switching debug board |
FRS(点击跳转Click to jump) |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -15℃～70℃ |
|
尺寸 Size: |
A：40.1mm B：20.1mm C：38.9mm |
|
重量 Weight: |
65± 1g |
| 齿轮类型 Gear type: | 钢 Steel |
| 机构极限角度 Limit angle: |
No limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: | 25T/5.9mm |

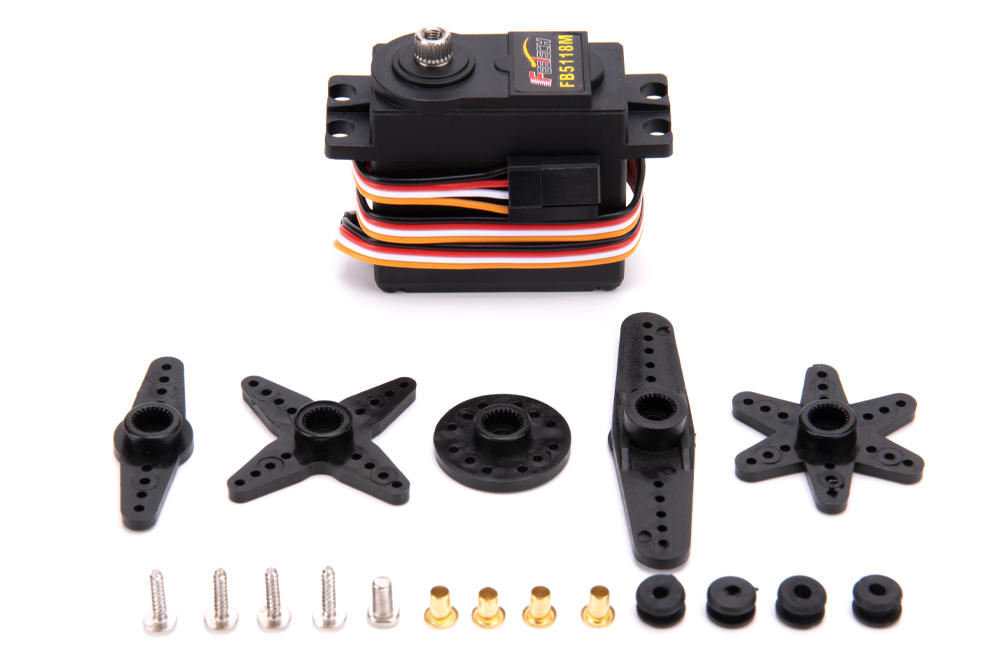

| 摆臂 Horn type: | Plastic,POM |
| 外壳 Case: | PA+Fiberglass |
| 舵机线 Connector wire: | 30CM |
| 马达 Motor: | Core Motor |
|
工作电压Operating Voltage Range: |
4-8.4V |
| 静态电流 Idle current(at stopped) | 6mA@7.4V |
|
空载速度 No load speed: |
0.167sec/60° (60RPM)@7.4V |
| 空载电流 Runnig current(at no load) : | 200mA @7.4V |
|
堵转扭矩 Peak stall torque: |
17.5kg.cm@7.4V |
|
额定扭矩 Rated torque: |
5kg.cm@7.4V |
| 堵转电流 Stall current: | 3.5A@7.4V |
| 旋转角度 Running degree: |
300° (at 500→2500μsec) |
| 旋转方向 Rotating direction |
逆时针 Counterclockwise(在1500 →2000 μsec) |
| 反馈电压 Feedback Voltage | 900usec-2.60V/1500usec- 1.66V/2100us-0.72V |
| 详细规格书下载Download detailed specifications: | |

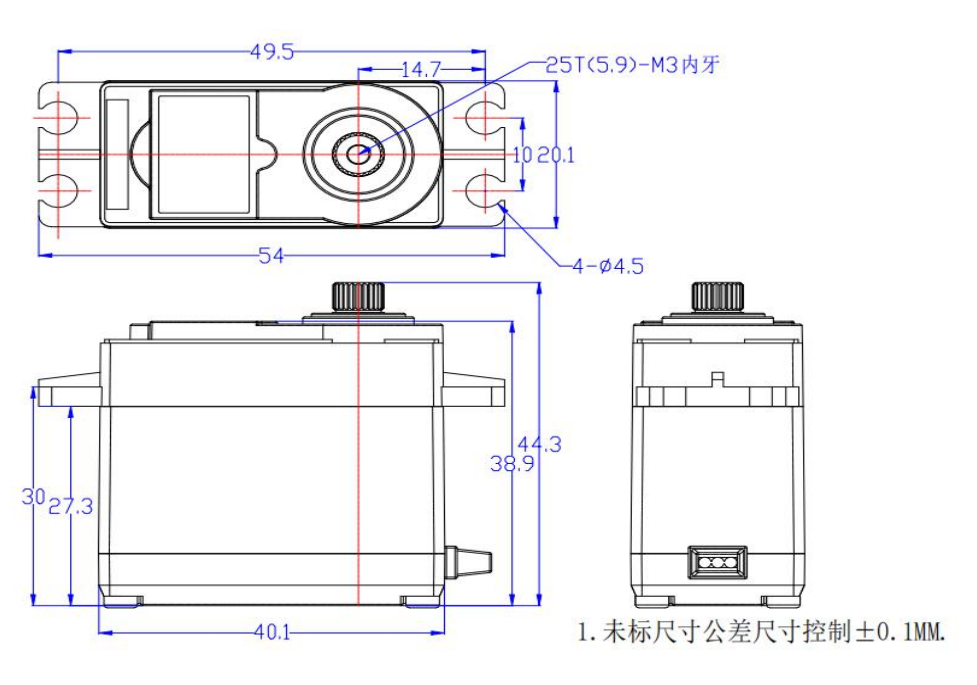

| 外形图 The Drawings: |
