3.5kg Digital Servo FT5303B
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FT5303B
Structure Size:40.8*20.1*38 *49.5mm
Product Weight:40g ±0.2（1.41oz）
The Maximum Speed:0.16sec/60°@6V
The Stall Torque:3.5kg.cm@6V
The Rotation Degree:180°
Product details
|
型 号 Model： |
FT5303B |
|
产品名称 Product Name: |
6V 3.5公斤数码舵机/6V 3. 5kg. cm Digital Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -15℃～70℃ |
|
尺寸 Size: |
A：40.8mm B：20.1mm C：38mm D: 49. 5mm |
|
重量 Weight: |
40g 士0.2 (1.41oz) |
| 齿轮类型 Gear type: | Plastic Gear(Nylon & POM ) |
| 机构极限角度 Limit angle: |
200° 土5° |
| 轴承 Bearing: | 2 Ball bearings |
| 出力轴 Horn gear spline: | 25T |
| 摆臂 Horn type: | Plastic, POM |
| 外壳 Case: | Nylon & Fiberglass |
| 舵机线 Connector wire: | 300mm ±5 mm |
| 马达 Motor: | Metal brush motor |
|
工作电压Operating Voltage Range: |
3-6V |
| 静态电流. Idlecurrent (ats topped) |
5MA-6MA |
|
空载速度 No load speed: |
0.16sec/60°@6V |
| 空载电流 Runnig current(at no load) : | 180 mA@6V |
|
堵转扭矩 Peak stall torque: |
3.5kg.cm@6V |
|
额定扭矩 Rated torque: |
1.0kg.cm@6V |
| 堵转电流 Stall current: | 850mA@6V |
| 控制信号 Command signal: | Pulse width modification |
| 放大器类型Amplifier type | Digital comparator |
| 脉冲宽度范围Pulsewidthrange | 500~ 2500sec |
| 中立位置Neutral position | 1500 μsec |
| 旋转角度Running degree | 180° (when 500~ 2500 μsec) |
| 死区宽度Dead bandwidth | 5 μsec |
| 旋转方向Rotating direction | Counterclockwise (when 1000~ 2000 μsec) |
| 详细规格书下载Download detailed specifications: | |

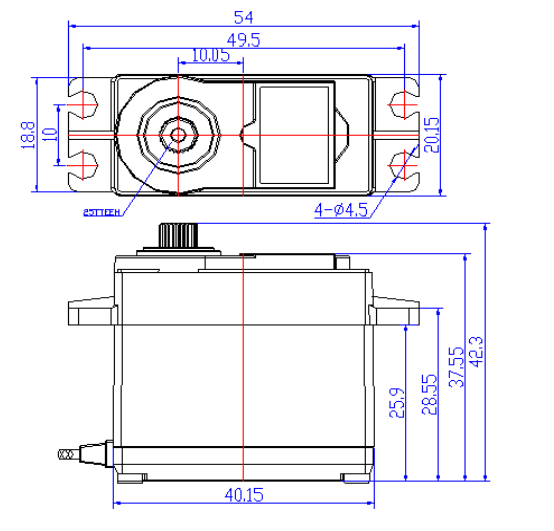

| 外形图 The Drawings: |
