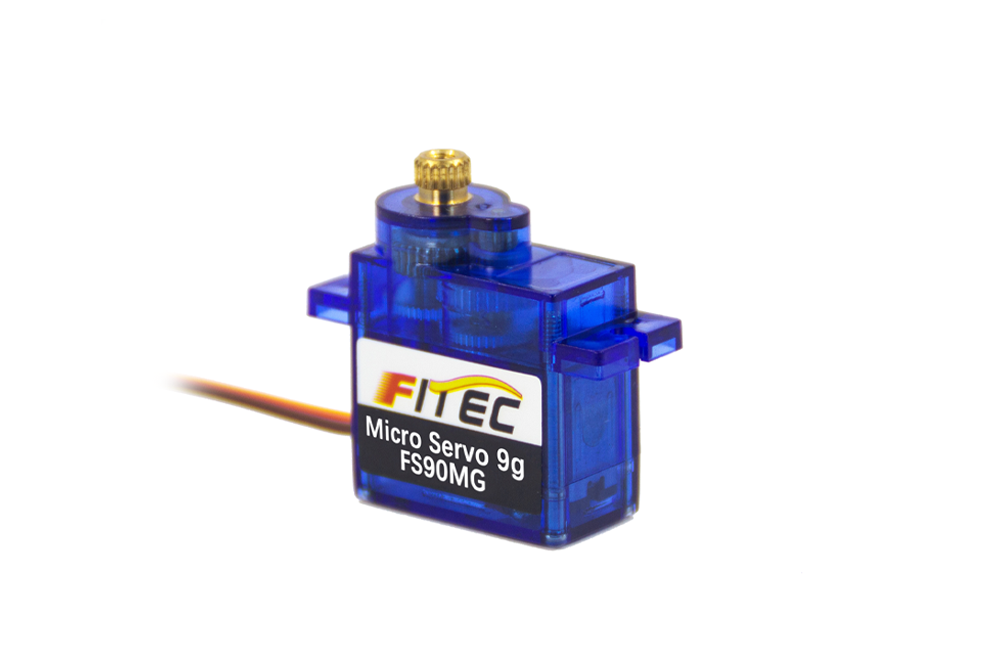

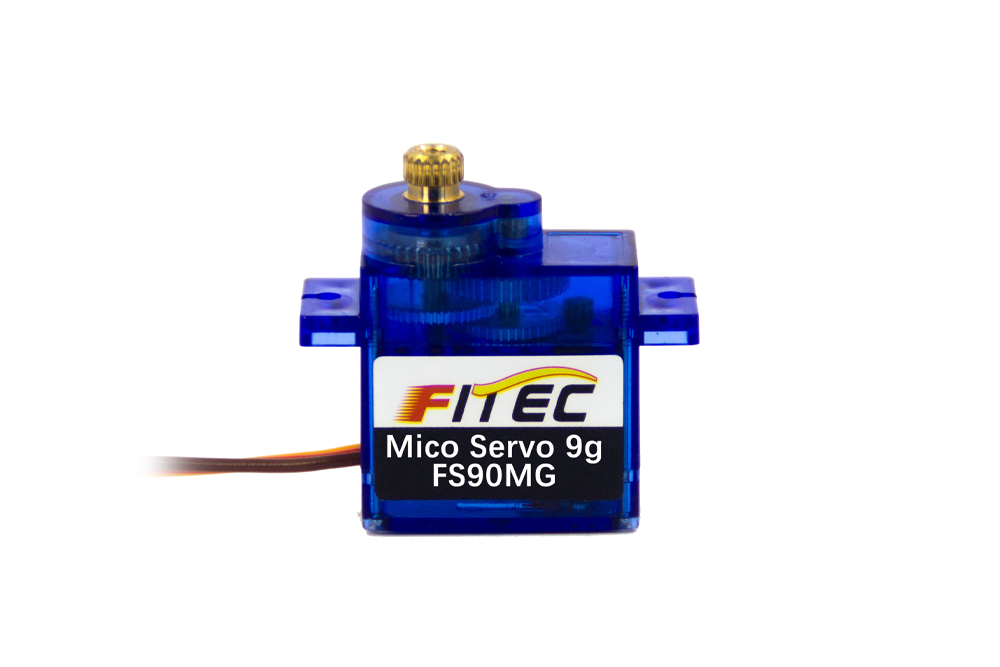

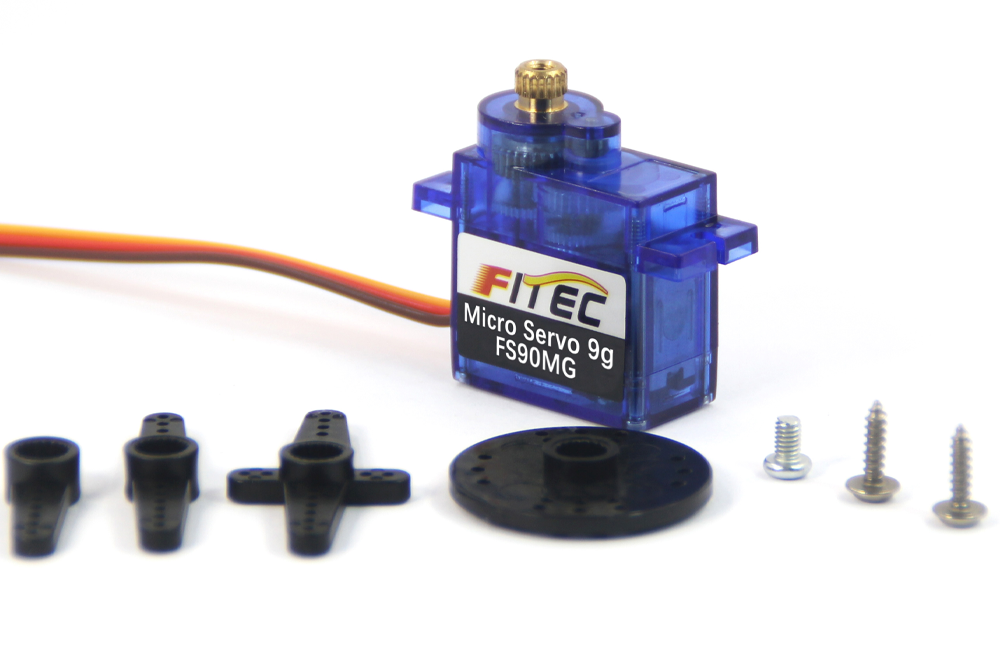

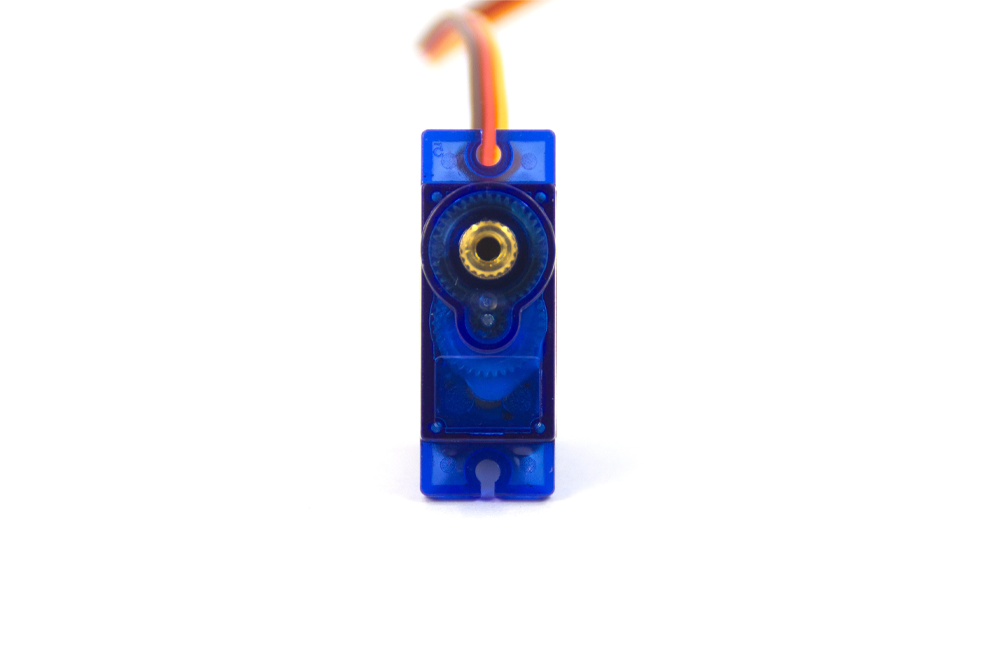

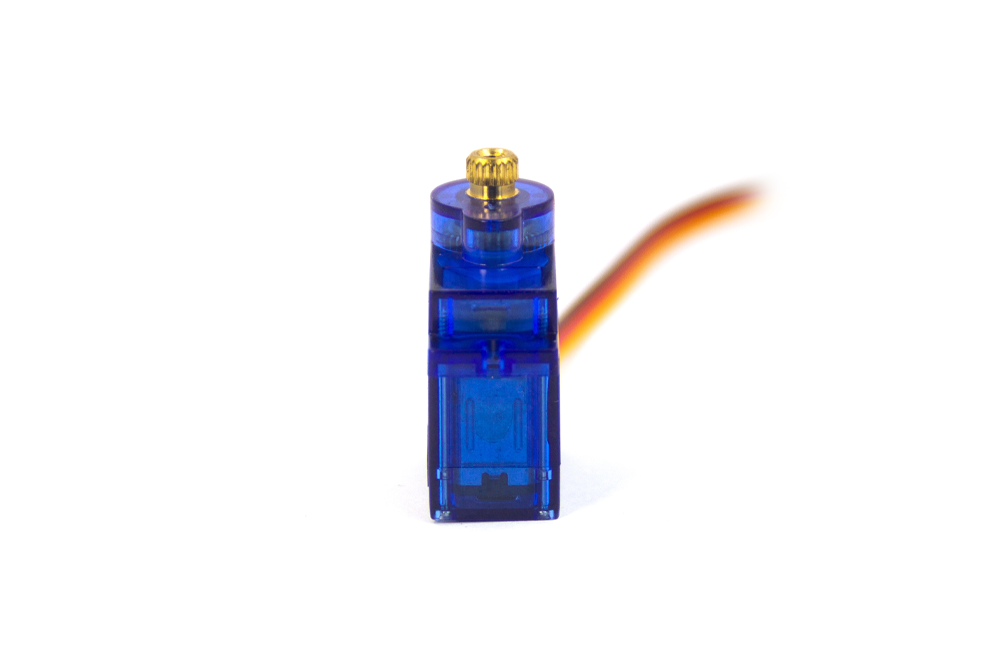

2.2kg 9g digital servo FS90MG
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FS90MG
Structure Size:22.5*12.1*26.7mm
Product Weight:12.5g
The Maximum Speed:110RPM@6V
The Stall Torque:2.2kg.cm@6V
The Rotation Degree:180°
Product details
|
型 号 Model： |
FS90MG |
|
产品名称 Product Name: |
6V 2.2kg 数码舵机/6V 2.2kg.cm Digital Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -1℃～70℃ |
|
尺寸 Size: |
A：22.5mm B：12.1mm C：26.7mm |
|
重量 Weight: |
12.7± 1g |
| 齿轮类型 Gear type: | Copper |
| 机构极限角度 Limit angle: |
180degree |
| 轴承 Bearing: | NO Ball bearings |
| 出力轴 Horn gear spline: | 21T |
| 摆臂 Horn type: | Plastic,POM |
| 外壳 Case: | ABS |
| 舵机线 Connector wire: |
250mm |
| 马达 Motor: | Metal brush motor |
|
工作电压Operating Voltage Range: |
4.8-6V |
| 静态电流 Idle current(at stopped) | 5mA-6mA |
|
空载速度 No load speed: |
0.07sec/60degr@6V |
| 空载电流 Runnig current(at no load) : | 220 mA @6V |
|
堵转扭矩 Peak stall torque: |
2.2kg.cm@6V |
|
额定扭矩 Rated torque: |
0.7kg.cm@6V |
| 堵转电流 Stall current: | 800mA@6V |
|
旋转角度 Running degree: |
180°(when 500～2500μsec) |
| 旋转方向 Rotating direction |
CW(when 1500～900 µsec) CCW(when 1500～2100 µsec) |
| 详细规格书下载Download detailed specifications: | |
| 外形图 The Drawings: |
