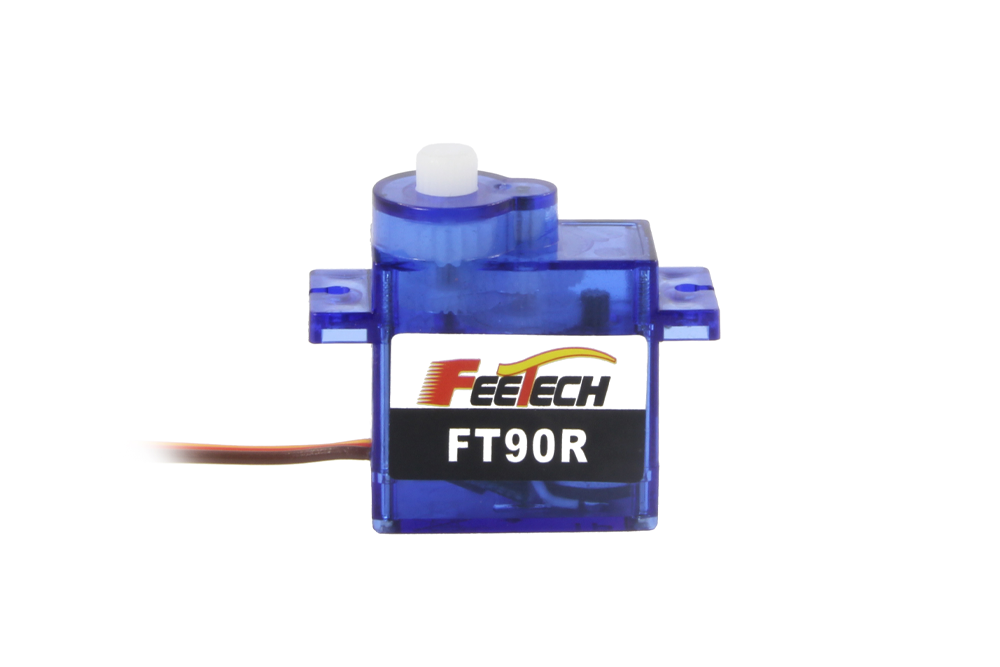

6V 1.5kg.cm PWM 360°Continuous rotation Digital Servo
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FT90R
Structure Size:22.9*12.1*26.5mm
Product Weight:9g
The Maximum Speed:130RPM@6V
The Stall Torque:1.5kg.cm@6V
The Rotation Degree:360
Product details
|
型 号 Model： |
FT90R |
|
产品名称 Product Name: |
6V 1.5kg PWM 360°连续转数码舵机 /6V 1.5kg.cm PWM 360°Continuous rotation Digital Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -10℃～70℃ |
|
尺寸 Size: |
A：22.9mm B：12.1mm C：26.5mm |
|
重量 Weight: |
9g |
| 齿轮类型 Gear type: | Plastic Gear |
| 机构极限角度 Limit angle: |
360° |
| 轴承 Bearing: | NO Ball bearings |
| 出力轴 Horn gear spline: | 20T |
| 摆臂 Horn type: | Plastic,POM |
| 外壳 Case: | ABS |
| 舵机线 Connector wire: | 250mm ±5 mm JR |
| 马达 Motor: | Metal brush motor |
|
工作电压Operating Voltage Range: |
4.8-6V |
| 静态电流 Idle current(at stopped) | 5mA-6mA |
|
空载速度 No load speed: |
130RPM@6V |
| 空载电流 Runnig current(at no load) : | 900mA @6V |
|
堵转扭矩 Peak stall torque: |
1.5kg.cm@6V |
|
额定扭矩 Rated torque: |
0.5kg.cm@6V |
| 堵转电流 Stall current: | 900mA@6V |
| 旋转方向 Rotating direction |
CW (1500~ 1000 μsec) , CCW (1500~ 2000 usec) |
| 详细规格书下载Download detailed specifications: | |

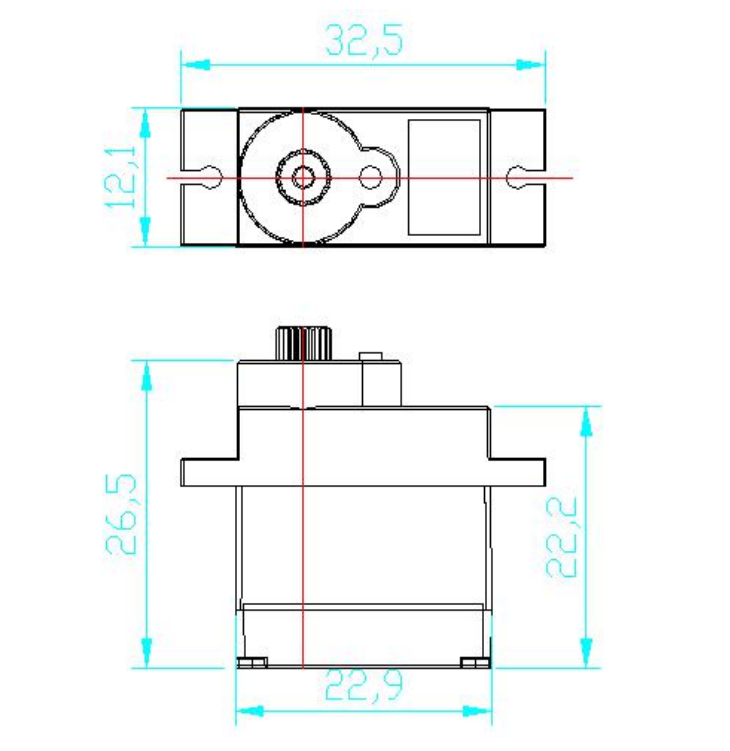

| 外形图 The Drawings: |
