6V 6kg Digital Coreless Servo FT2806M
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FT-2806-C001
Structure Size:23*12*27.5
The Maximum 0.073 sec/60°@7.4V
The Stall Torque:7.2kg.cm@7.4V
The Rotation Degree:180°
Product details
|
型 号 Model： |
FT-2806-C001 |
|
产品名称 Product Name: |
6V 6kg数码舵机/6V 6kg- -cm Digital Servo |
| 存储温度 Storage Temperature Range | -30℃～70℃ |
| 运行温度 Operating Temperature Range: | -20℃～60℃ |
|
尺寸 Size: |
A：23mm B：12mm C：27.5mm . |
|
重量 Weight: |
18.3±2g |
| 齿轮类型 Gear type: | Metal |
| 机构极限角度 Limit angle: |
No limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: | 25T/4.95mm |
| 摆臂 Horn type: | Plastic,POM |
| 外壳 Case: | PA66+GF |
| 舵机线 Connector wire: | 25±1CM |
| 马达 Motor: | Coreless Motor |
|
工作电压Operating Voltage Range: |
4.8-8.4V |
| 静态电流Idle current (at stopped) . | 6mA@7.4V |
|
空载速度 No load speed: |
0. 073 sec/ 60°@7.4V |
| 空载电流 Runnig current(at no load) : | 80mA@7.4V |
|
堵转扭矩 Peak stall torque: |
7.2kg.cm@7.4V |
|
额定扭矩 Rated torque: |
2.4kg.cm@7.4V |
| 堵转电流 Stall current: | 2.0A@7.4V |
| 控制信号Command si gnal | Pulse width modification |
| 放大器类型Amplifier type | Digital Controller |
| 脉冲宽度范围Pulse width range | 500→2500 μsec |
| 中立位置 Neutral Position | 1500 μsec |
| 旋转角度Running degree |
180±5°(at 500→2500μsec) |
| 死区宽度Dead band width | ≤4 μsec |
| 旋转方向Rotating direction | 逆时针 Counterclockwise(在500→2500 μsec) |
| 详细规格书下载Download detailed specifications: | |

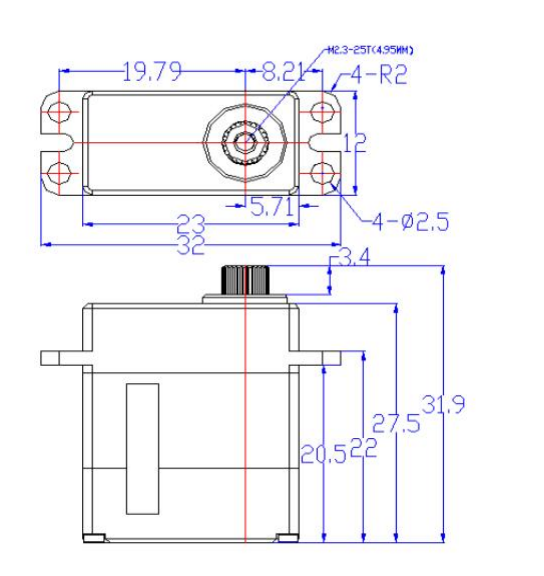

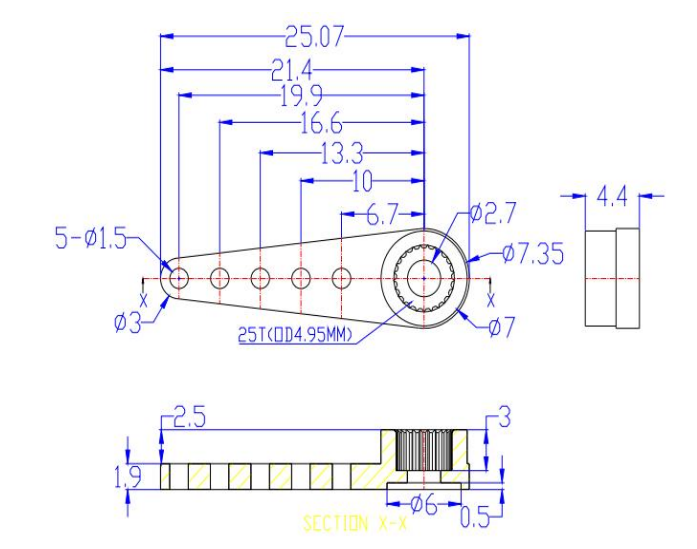

| 外形图 The Drawings: |
