1.3kg analog continuous servo FS90R
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FS90R
Structure Size:22.5*12.1*27.7*
The Maximum Speed:100RPM@6V
The Stall Torque:1.5kg.cm@6V
The Rotation Degree:360°
Product details
|
型 号 Model： |
FS90R |
|
产品名称 Product Name: |
4.8V 1.3kg模拟连续转舵机/4.8V.1. 3kg. cm Analog 360 Degree Continuous rotation Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -15℃～70℃ |
|
尺寸 Size: |
A：22.5mm B：12.1mm C：27.7mm . |
|
重量 Weight: |
9g ±0.2 |
| 齿轮类型 Gear type: | Plastic Gear (Nylon & POM ) |
| 机构极限角度 Limit angle: |
NO limit |
| 轴承 Bearing: | NO Ball bearings |
| 出力轴 Horn gear spline: | 21T(4.86mm) |
| 摆臂 Horn type: | Plastic,POM |
| 外壳 Case: | Nylon & Fiberglass |
| 舵机线 Connector wire: | 250mm ±5 mm |
| 马达 Motor: | Coreless motor |
|
工作电压Operating Voltage Range: |
4.8-6V |
|
空载速度 No load speed: |
100RPM/60°@6V |
| 空载电流 Runnig current(at no load) : | 130 mA@6V |
|
堵转扭矩 Peak stall torque: |
1.5kg.cm@6V |
|
额定扭矩 Rated torque: |
0.5kg.cm@6V |
| 堵转电流 Stall current: | 800mA@6V |
| 控制信号Command signal | Pulse width modification |
| 放大器类型Amplifier type | Analog comparator |
| 脉冲宽度范围Pulse width range | 700~2300usec |
| 停止位置Stop position | 1500 μsec |
| 旋转角度Running degree | 360 DegreeContinuous rotation. |
| 死区宽度Dead band width | 90 μsec |
| 旋转方向Rotating direction | CCW (when 1500~2300 μsec) |
| 详细规格书下载Download detailed specifications: | |

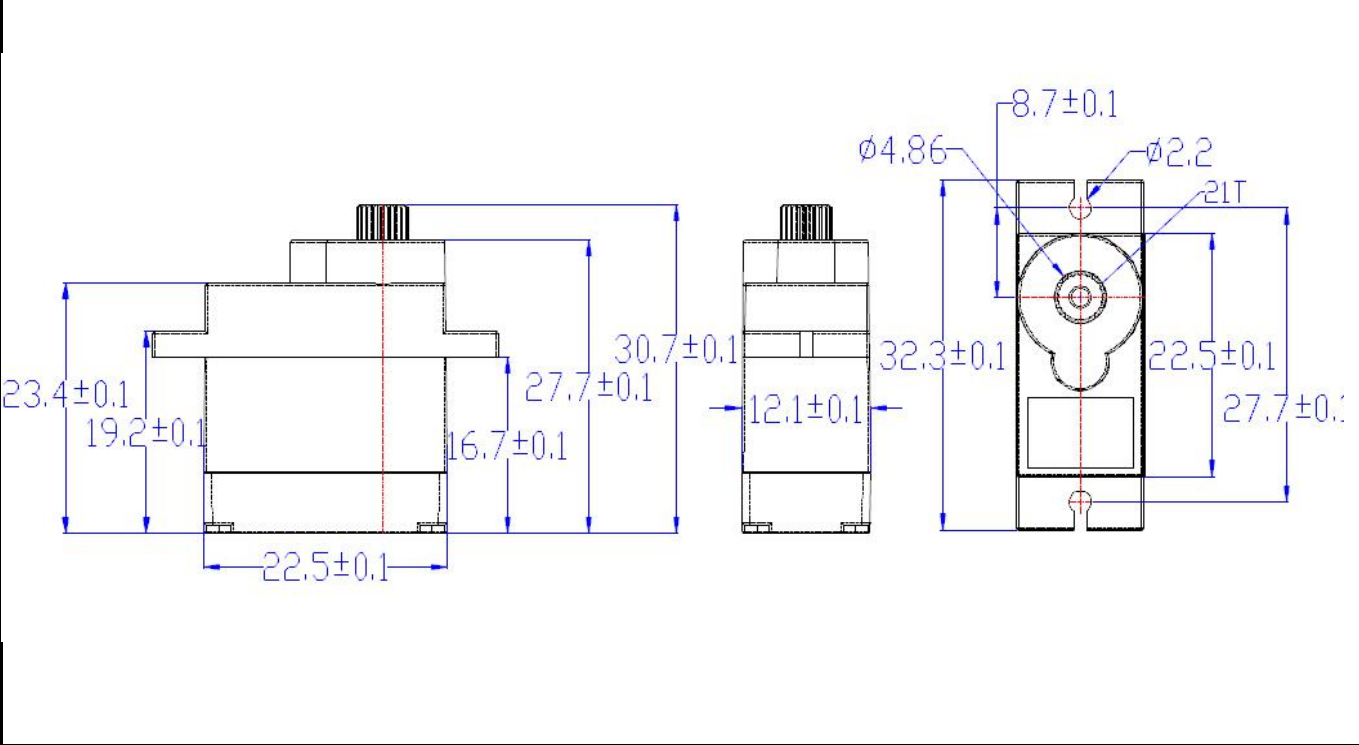

| 外形图 The Drawings: |
