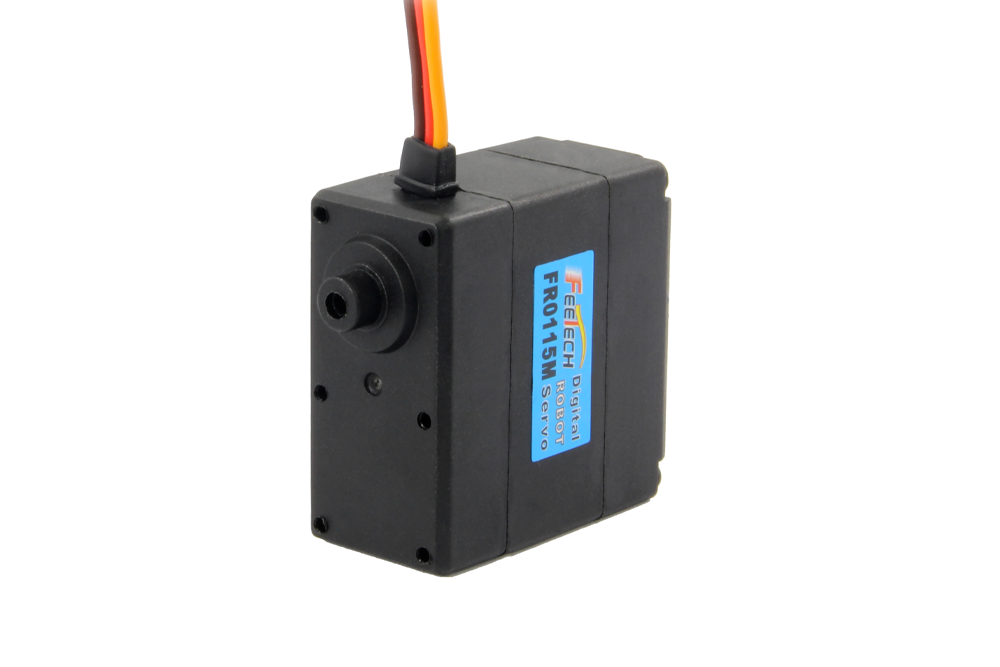

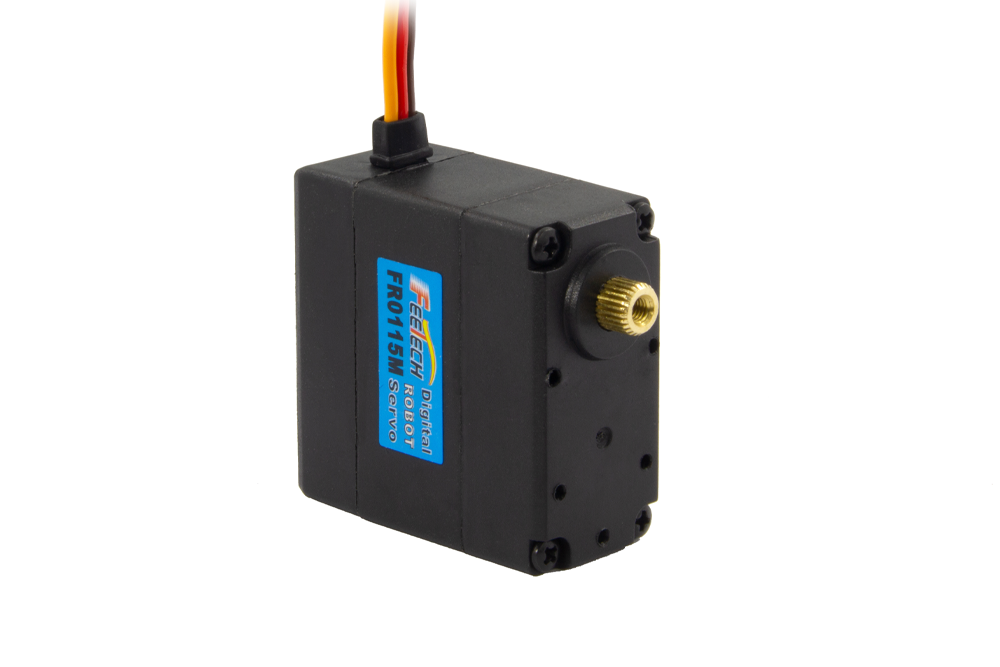

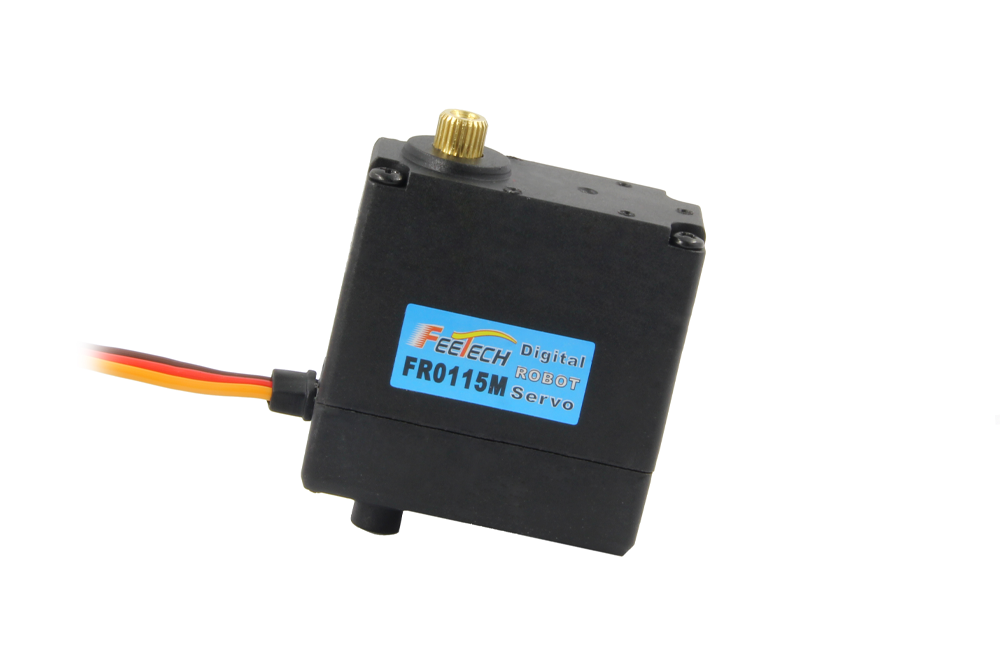

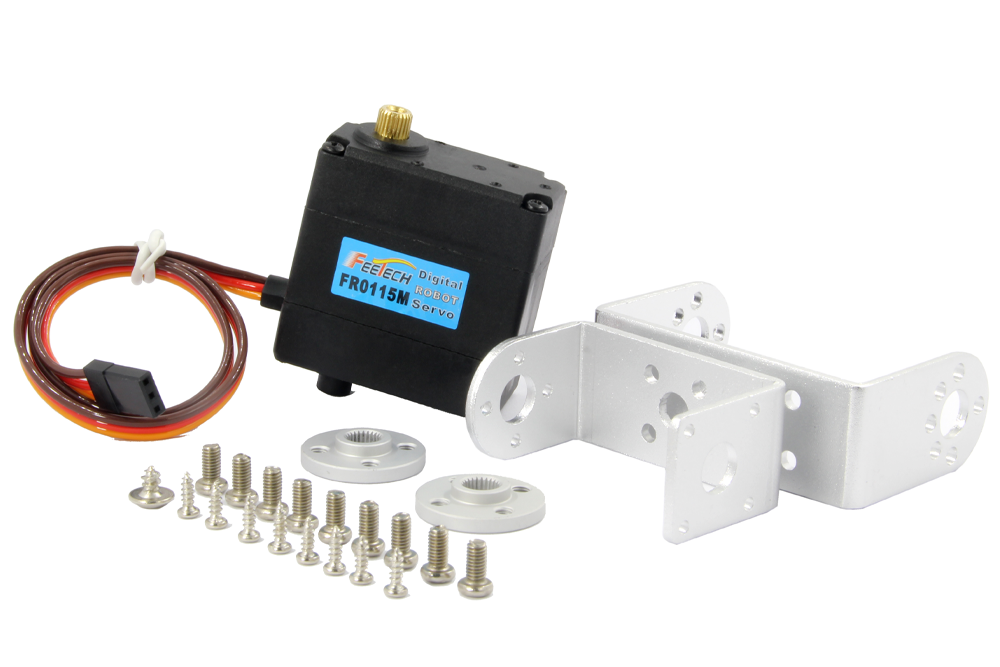

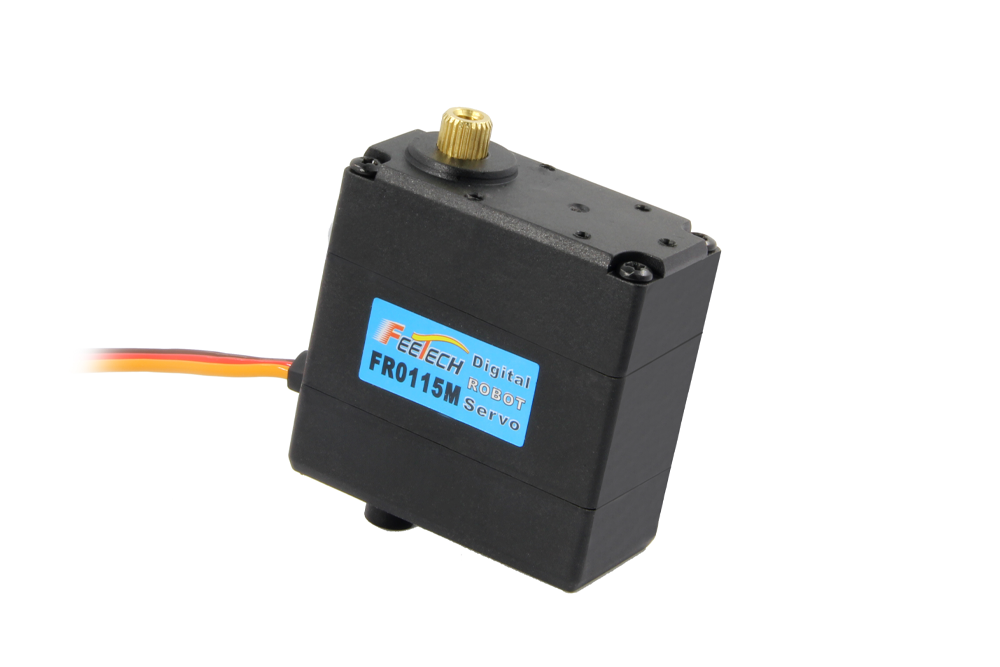

15kg digital dual axis robot servo FR0115M
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FR0115M
Structure Size:40.0*20.0*40.5mm
Product Weight:59g
The Maximum Speed:0.16sec/60°@6V
The Stall Torque:15kg.cm@6V
The Rotation Degree:180°
Product details
|
型 号 Model： |
FR0115M |
|
产品名称 Product Name: |
6V 15公斤数码机器人舵机/6V 15kg. cm Digital Robot Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -15℃～70℃ |
|
尺寸 Size: |
A：40.0mm B：20.0mm C：40.5mm |
|
重量 Weight: |
59g |
| 齿轮类型 Gear type: | Metal Gear |
| 机构极限角度 Limit angle: |
NO limit |
| 轴承 Bearing: | 2 Ball bearings |
| 出力轴 Horn gear spline: | 25T |
| 摆臂 Horn type: | Plastic,POM |
| 外壳 Case: | Nylon & Fiberglass |
| 舵机线 Connector wire: | 300mm ±5 mm |
| 马达 Motor: | Coreless motor |
|
工作电压Operating Voltage Range: |
4.8-6V |
|
空载速度 No load speed: |
0.16sec/60°@6V |
| 空载电流 Runnig current(at no load) : | 190 mA@6V |
|
堵转扭矩 Peak stall torque: |
15kg.cm@6V |
|
额定扭矩 Rated torque: |
5kg.cm@6V |
| 堵转电流 Stall current: | 1500mA@6V |
| 控制信号 Command signal: | Pulse width modification |
| 放大器类型Amplifier type | Digital system |
|
脉冲宽度范围Pulse width range |
500~ 2500usec |
|
中立位置Neutral position |
1500 μsec |
|
旋转角度Running degree |
180° (士5° ) (when 500~ 2500 μsec) |
| 死区宽度Dead band width | 4 μsec |
| 旋转方向Rotating direction | Counterclockwise (when 1000~ 2000 μsec) |
| 详细规格书下载Download detailed specifications: | |

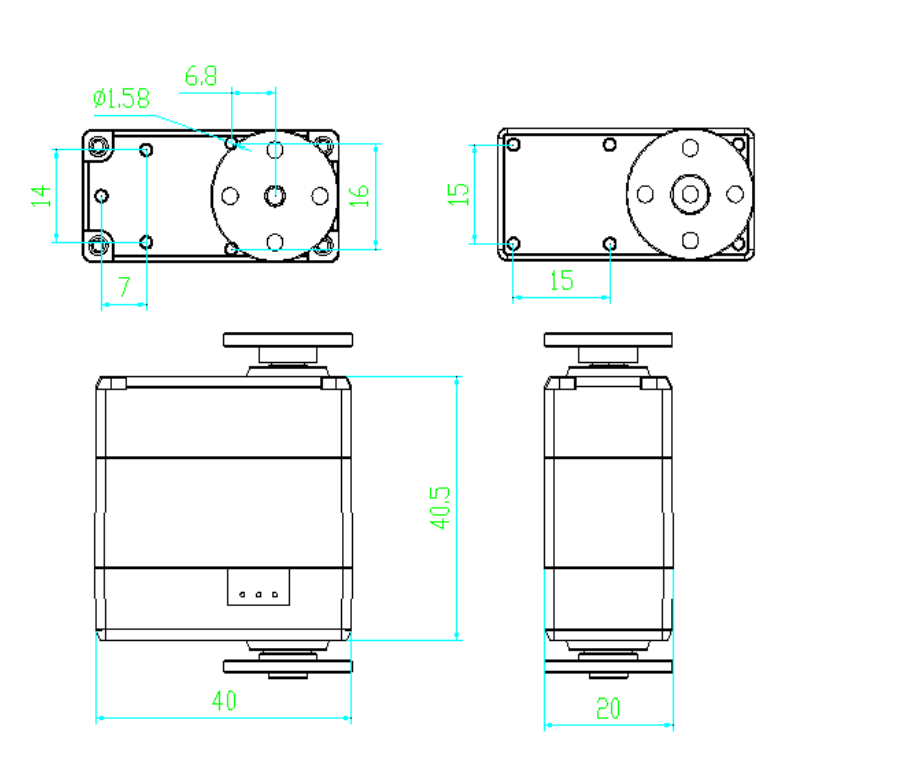

| 外形图 The Drawings: |
