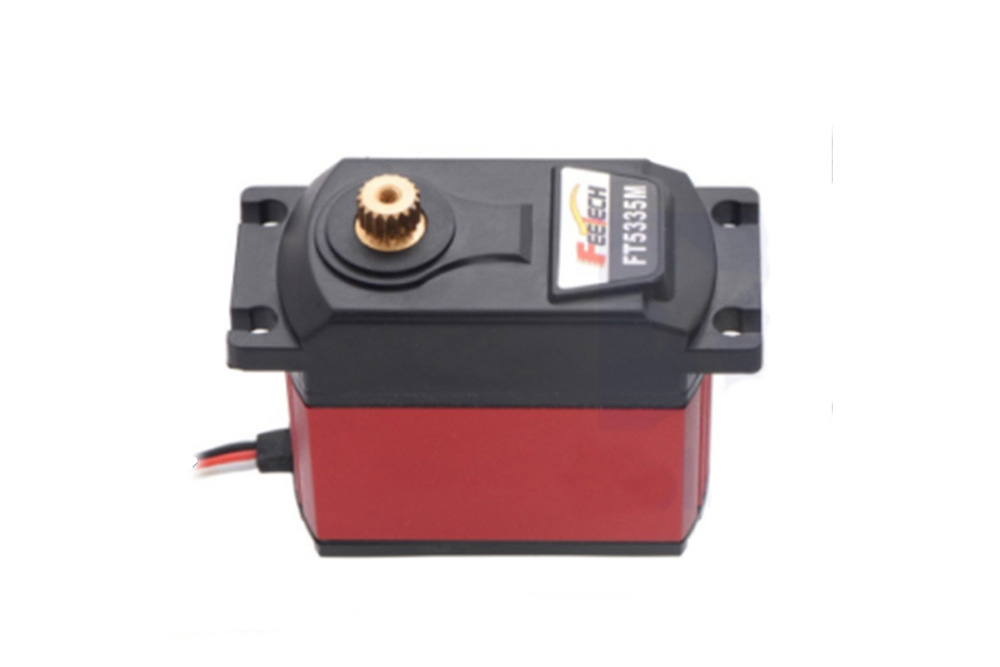

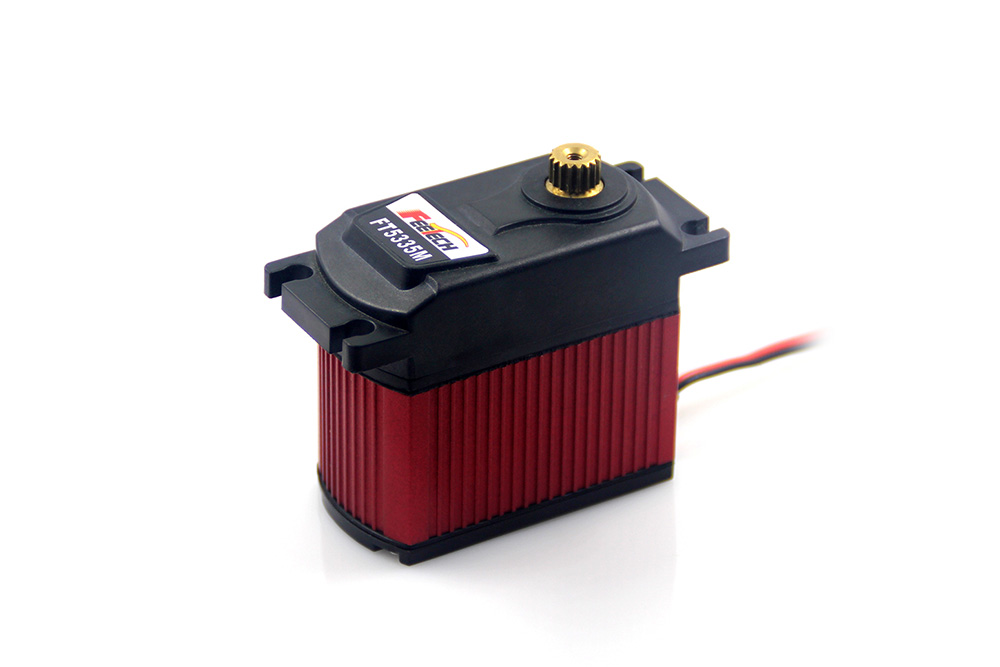

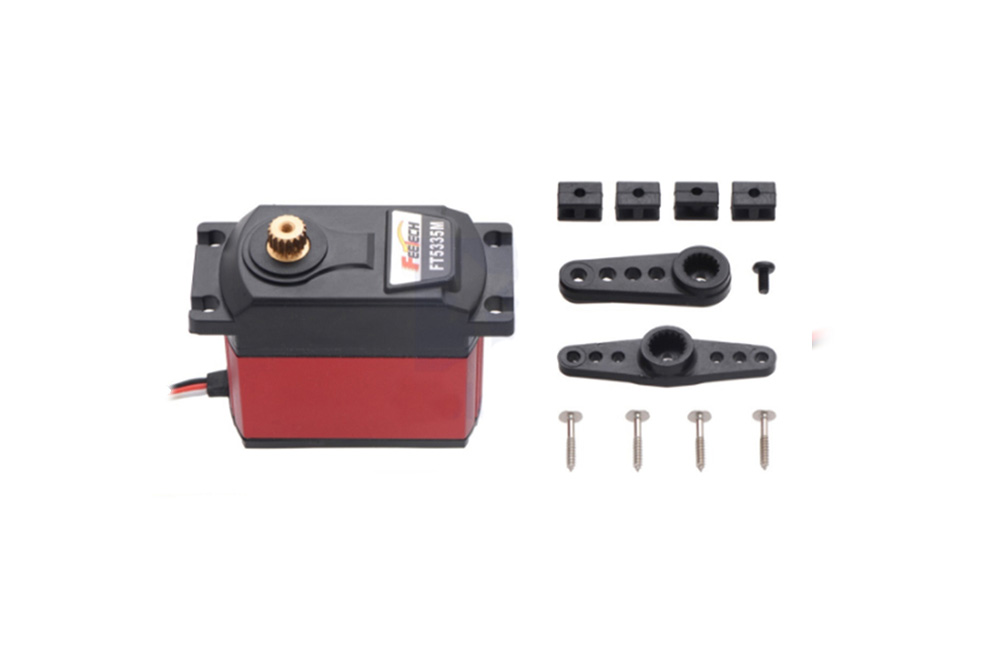

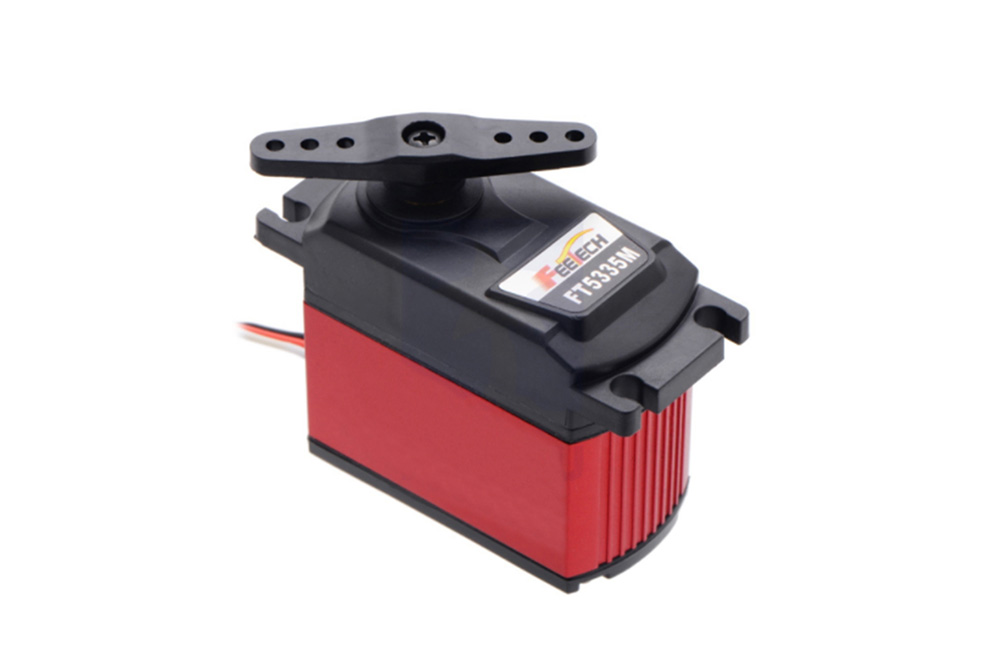

8.4V 40kg.cm High voltage Digital Servo FT5335M
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FT5335M
Structure Size:62.8*32.5*55.9mm
Product Weight:178g ±0.2
The Maximum Speed:0.18sec/60°@6V
The Stall Torque:40.5kg.cm@6V
The Rotation Degree:120°
Product details
|
型 号 Model： |
FT5335M |
|
产品名称 Product Name: |
8.4V 40kg数字舵机/8.4V 40kg.cm High voltage Digital Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -15℃～70℃ |
|
尺寸 Size: |
A：62.8mm B：32.5mm C：55.9mm |
|
重量 Weight: |
178g ±0.2 |
| 齿轮类型 Gear type: | Metal Gear |
| 机构极限角度 Limit angle: |
180degree |
| 轴承 Bearing: | 2BB |
| 出力轴 Horn gear spline: | 25T(5.8mm) |

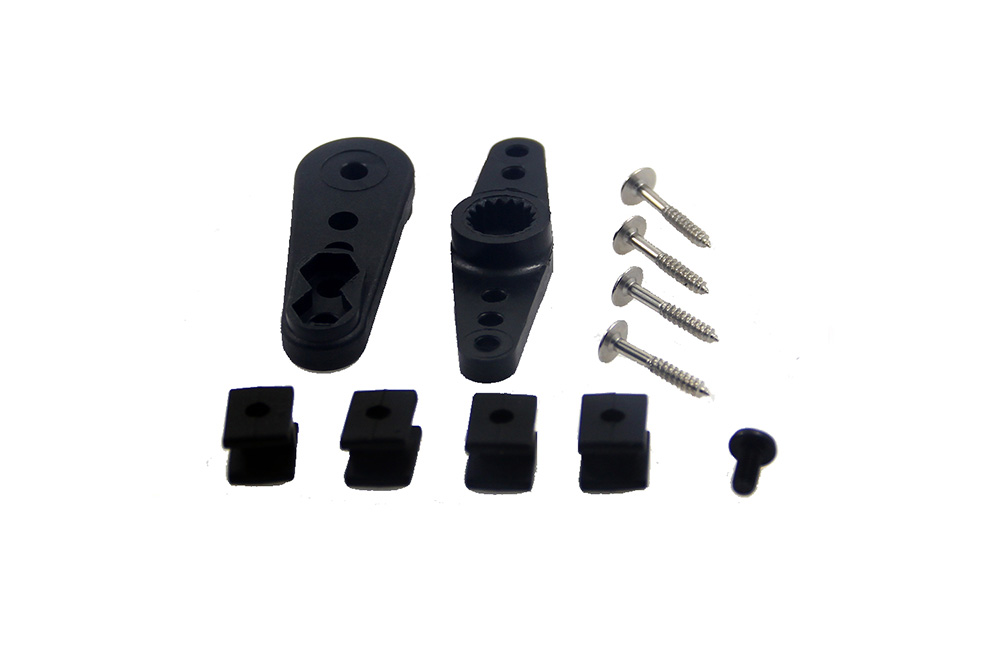

| 摆臂 Horn type: | Plastic,POM |
| 外壳 Case: | Engineering plastics+Aluminium |
| 舵机线 Connector wire: | 300mm ±5 mm |
| 马达 Motor: | Core motor |
| 防水性能 Splash water resistance： | NO |
|
工作电压Operating Voltage Range: |
6-8.4V |
|
空载速度 No load speed: |
0.18sec/60°@6V |
| 空载电流 Runnig current(at no load) : | 280 mA@6V |
|
堵转扭矩 Peak stall torque: |
40.5kg.cm@6V |
|
额定扭矩 Rated torque: |
13.5kg.cm@6V |
| 堵转电流 Stall current: | 2400mA@6V |
| 控制信号 Command signal: | Pulse width modification |
| 放大器类型Amplifier type | Analog comparator |
|
脉冲宽度范围Pulse width range |
900~ 2100usec |
|
中立位置Neutral position |
1500 μsec |
|
旋转角度Running degree |
120° (when 900～2100 µ sec) |
| 死区宽度Dead bandwidth | 2 μsec |
| 旋转方向Rotating direction |
CW(when 1500～900 µsec) CCW(when 1500～2100 µsec) |
| 详细规格书下载Download detailed specifications: | |
| 外形图 The Drawings: |
