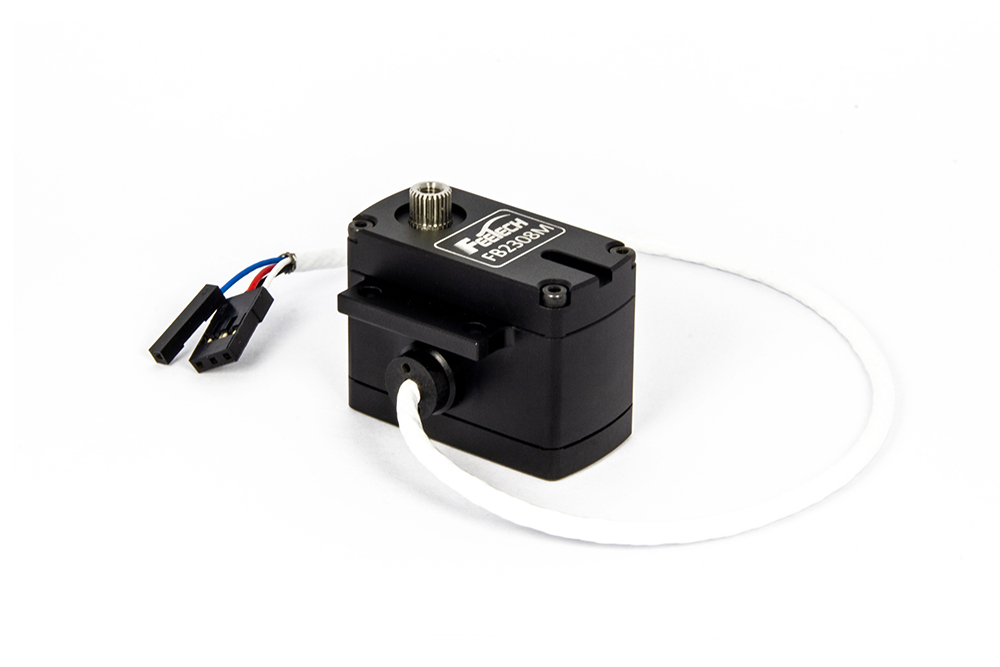

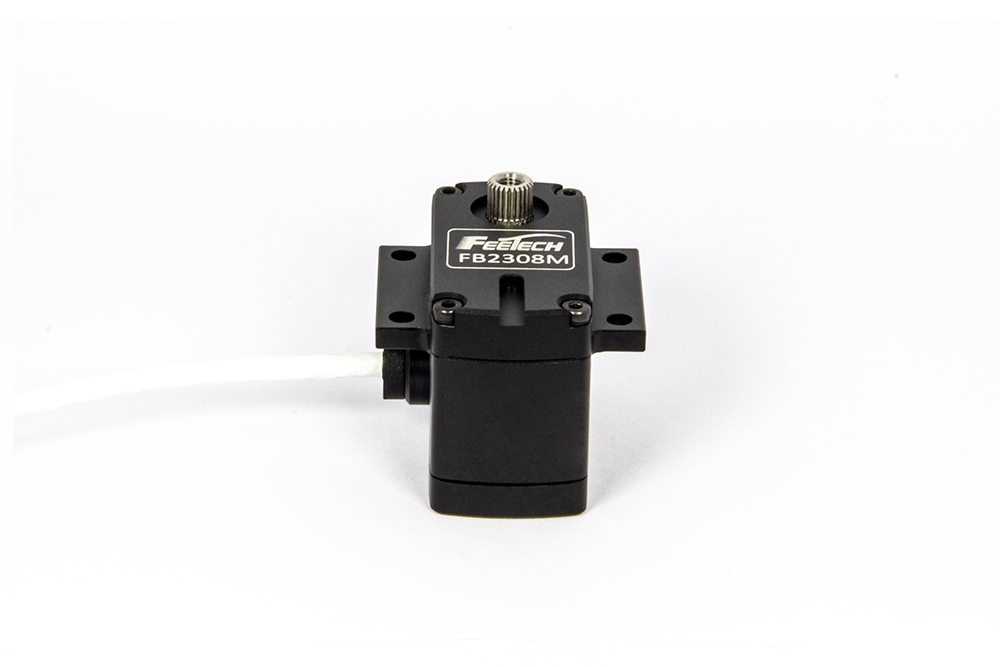

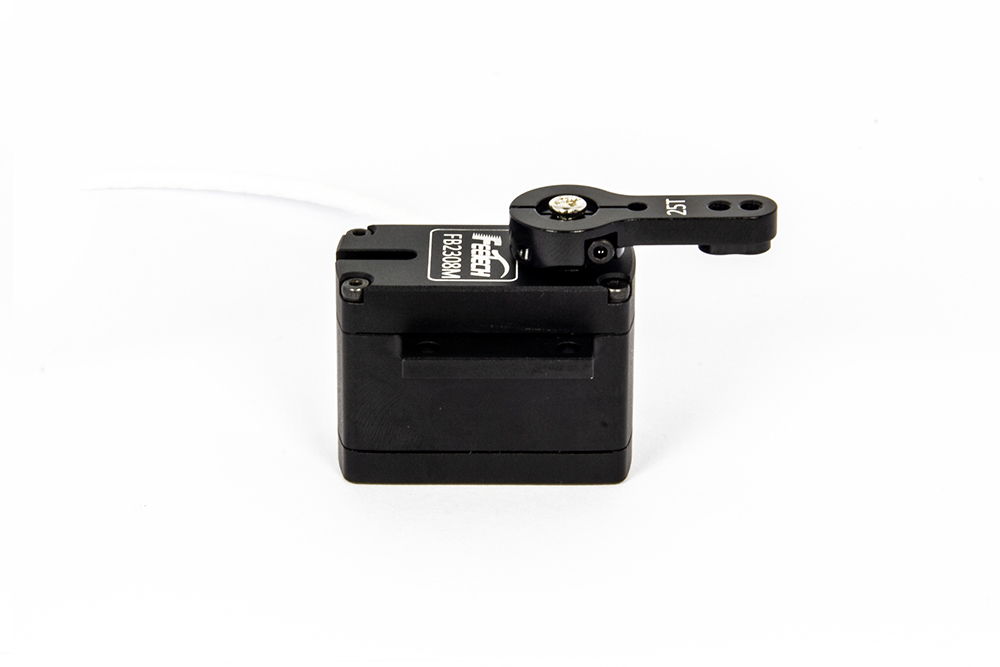

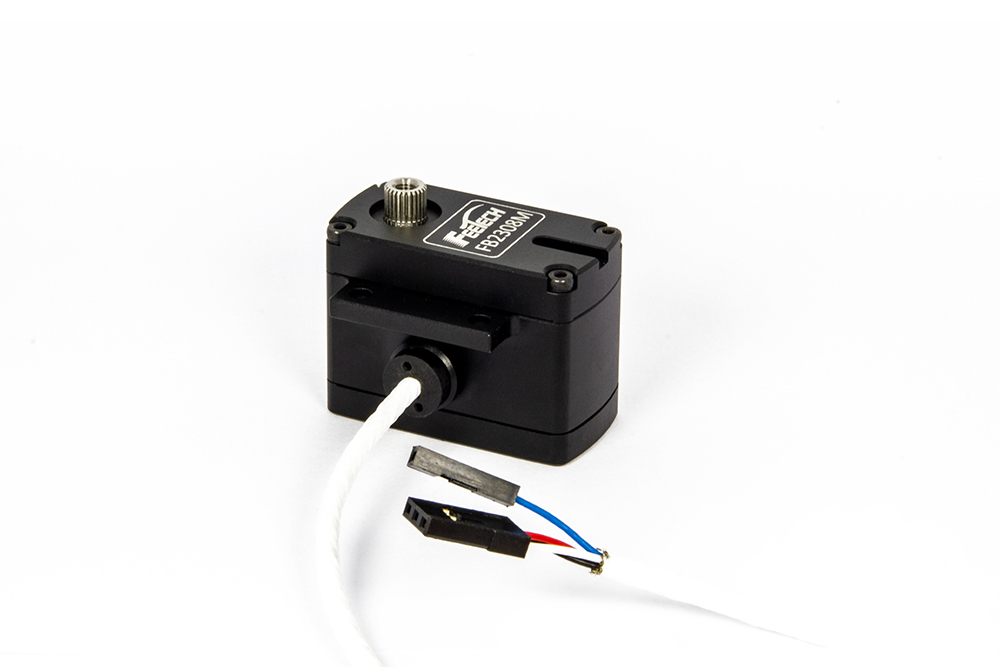

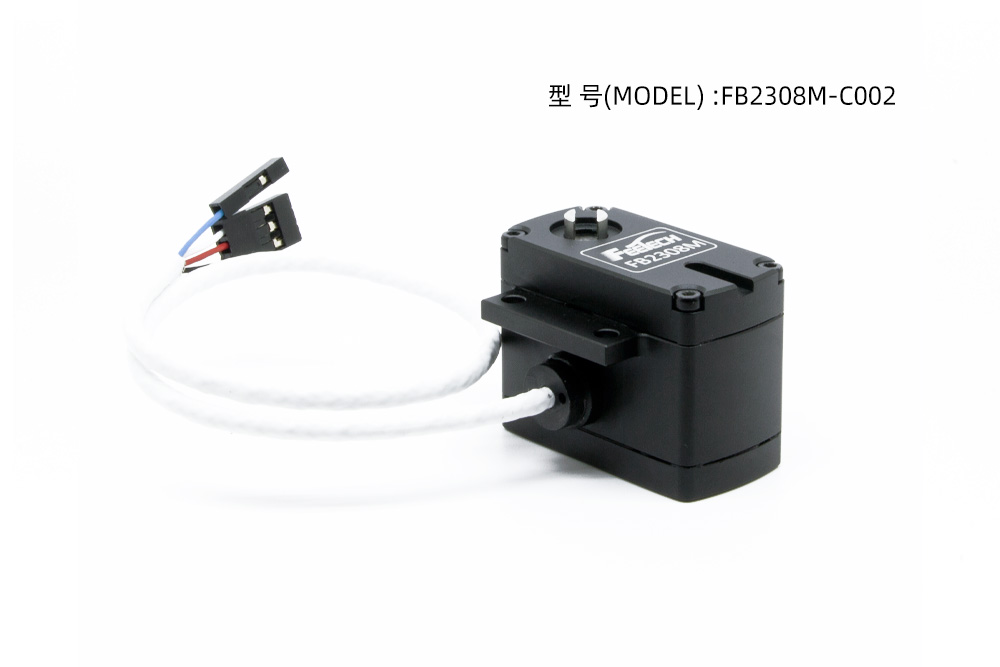

12V 7kg.cm PWM Brushless waterproof servo
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FB2308M
Structure Size:39.1*33.5*28.9mm
The Maximum Speed:0.133sec/60°@12V
The Stall Torque:7kg. cm@12V
The Rotation Degree:360°
Product details
|
型 号 Model： |
FB2308M |
|
产品名称 Product Name: |
12V 7kg.cm PWM数码360度可控磁编码金属壳钢齿轮无刷防水舵机 |
| 存储温度 Storage Temperature Range | -40℃～80℃ |
| 运行温度 Operating Temperature Range: | -20℃～60℃ |
|
尺寸 Size: |
A：39.1mm B：33.5mm C: 28.9mm |
|
重量 Weight: |
59.5± 1g |
| 齿轮类型 Gear type: |
钢 Steel |
| 机构极限角度 Limit angle: |
NO limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: |
25T/5.9mm |
| 减速比Gear Ratio： | 1/188 |
| 外壳 Case: | Alumi num |
| 舵机线 Connector wire: | 23CM |
| 马达 Motor: |
Brushless Motor |
|
工作电压Operating Voltage Range: |
12V |
| 静态电流Idle current (atstopped) |
6MA@12V |
|
空载速度 No load speed: |
0.133sec/60°@12V |
| 空载电流 Runnig current(at no load) : | 135mA@12V |
|
堵转扭矩 Peak stall torque: |
7kg.cm@12V |
|
额定扭矩 Rated torque: |
2.3kg.cm@12V |
| 堵转电流 Stall current: | 1.1A@12V |
| 控制信号Command si gnal | Pulse width modification |
| 放大器类型Amplifier type | Digital comparator |
| 脉冲宽度范围Pulse width range | 500~2500 μ sec |
| 中立位置Stop position | 1500 μ sec |
| 旋转角度Running degree |
360°(at 500→2500μsec) |
| 死区宽度Dead band width | ≤4 μ sec |
| 旋转方向Rotating direction | 逆时针 Counterclockwi se (在1500→2000 μ sec) |
| 详细规格书下载Download detailed specifications: | |

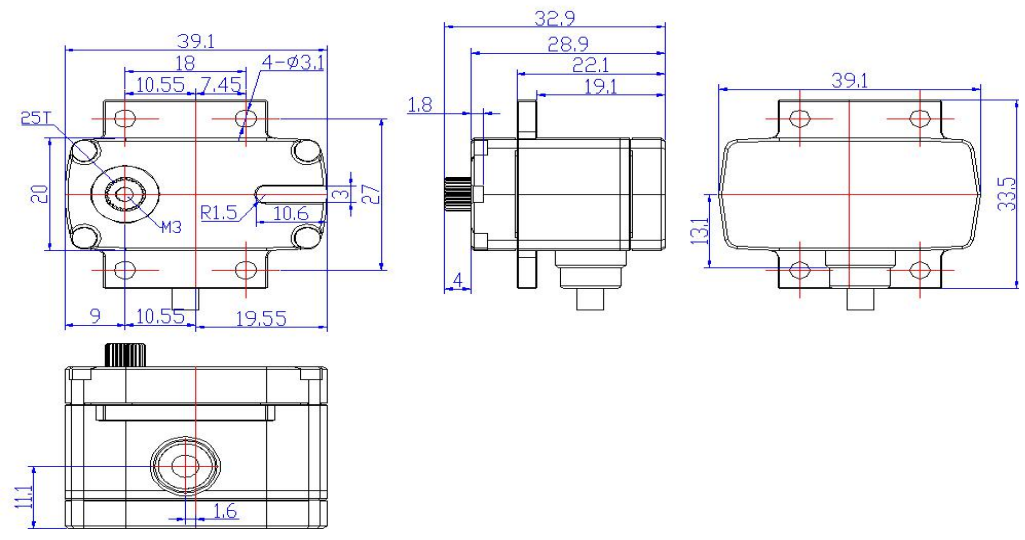

| 外形图 The Drawings: |
