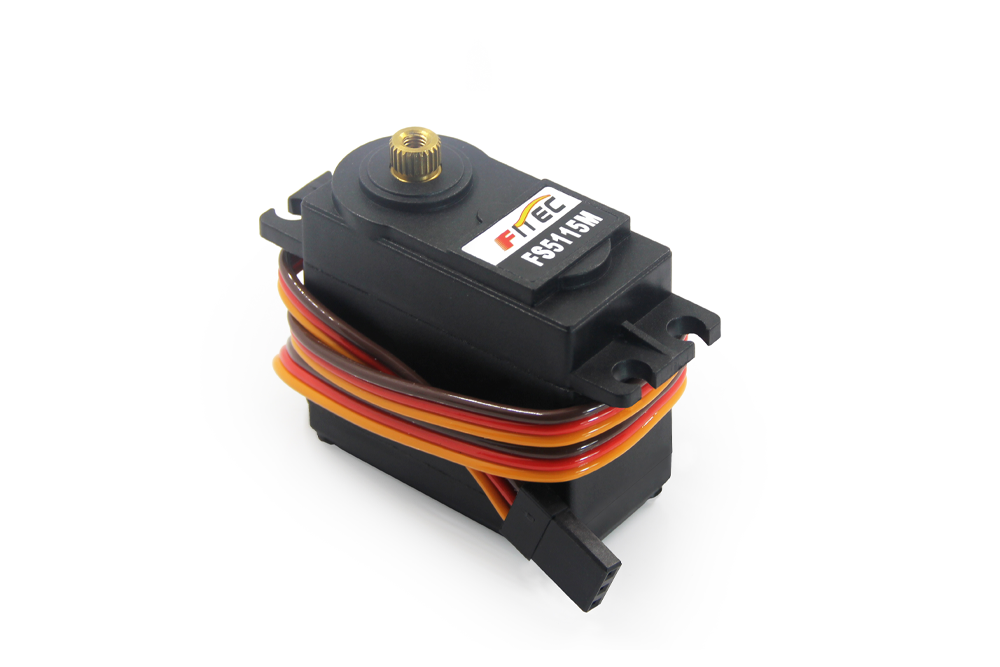

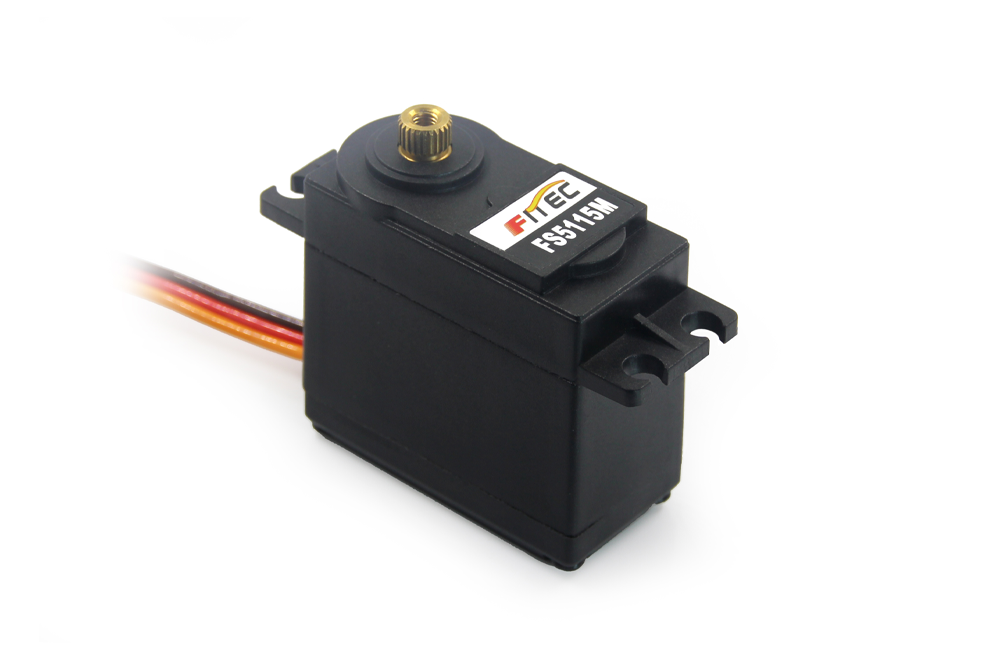

15kg analog servo FS5115M
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FS5115M
Structure Size:40.1*20.1*38.9mm
Product Weight:60.7± 1g
The Maximum Speed:0.2 sec/60°@6V
The Stall Torque:15kg.cm/60°@6V
The Rotation Degree:180°
Product details
|
型 号 Model： |
FS5115M |
|
产品名称 Product Name: |
6V 15公斤模拟舵机/6V 15kg. cm Analog Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -15℃～70℃ |
|
尺寸 Size: |
A：40.1mm B：20.1mm C:38.9mm |
|
重量 Weight: |
60.7± 1g |
| 齿轮类型 Gear type: | 铜 Copper |
| 机构极限角度 Limit angle: |
200° |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: | 25T/5.9mm |
| 摆臂 Horn type: | Plastic,POM |
| 外壳 Case: | PA+Fiberglass |
| 舵机线 Connector wire: | 30CM |
| 马达 Motor: | Core Motor |
|
工作电压Operating Voltage Range: |
4-8.4V |
| 静态电流Idle current (at stopped) | 6mA@6V |
|
空载速度 No load speed: |
0. 2sec/60° @6V |
| 空载电流 Runnig current(at no load) : | 220mA@6V |
|
堵转扭矩 Peak stall torque: |
15.5kg.cm@6V |
|
额定扭矩 Rated torque: |
5.16kg.cm@6V |
| 堵转电流 Stall current: | 1.7A@6V |
| 控制信号Command si gnal | Pulse width modification |
| 放大器类型Amplifier type | Digital comparator |
| 脉冲宽度范围Pulse width range | 500~2500usec |
| 停止位置Stop position | 1500 μsec |
| 旋转角度Running degree | 180° (at 500→2500μsec) |
| 死区宽度Dead band width | ≤4 μsec |
| 旋转方向Rotating direction | 逆时针 Counterclockwise(在1500 →2000 μsec) |
| 详细规格书下载Download detailed specifications: | |

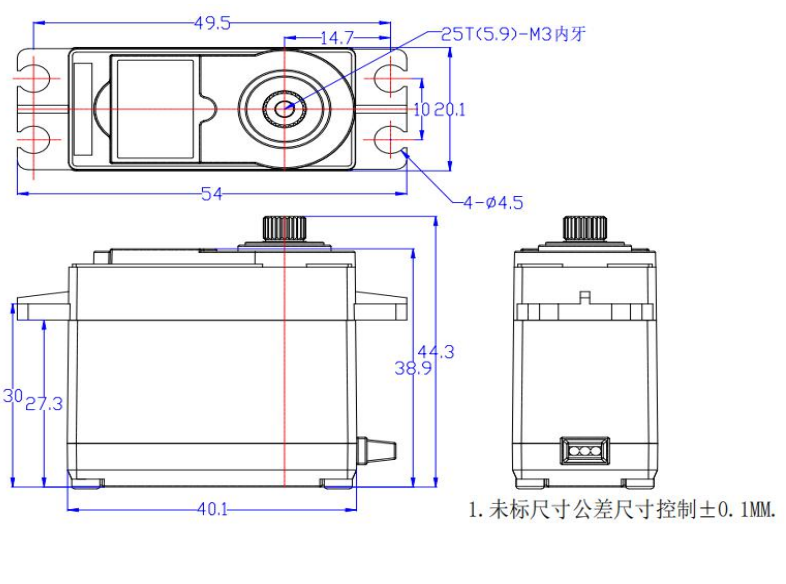

| 外形图 The Drawings: |
