15kg digital dual axis robot servo FT15M
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FT15M
Structure Size:40.2*20.2*40.1mm
Product Weight:61.8± 1g
The Maximum Speed:0.161sec/60°@7.4V
The Stall Torque:19.5kg.cm@7.4V
The Rotation Degree:180°± 5°
Product details
|
型 号 Model： |
FT15M |
|
产品名称 Product Name: |
6V 15公斤数码180度机器人舵机/6V 15kg. cm Digital 180° Robot Servo |
| 存储温度 Storage Temperature Range | -20℃～80℃ |
| 运行温度 Operating Temperature Range: | -10℃～60℃ |
|
尺寸 Size: |
A：40.2mm B：20.2mm C：40.1mm |
|
重量 Weight: |
61.8± 1g |
| 齿轮类型 Gear type: | 铜 Copper |
| 机构极限角度 Limit angle: |
NO limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: | 25T/5.9mm |
| 外壳 Case: | Aluminum |
| 舵机线 Connector wire: | 30±0.5CM |
| 马达 Motor: | 铁芯电机Core Motor |
|
工作电压Operating Voltage Range: |
4-8.4V |
|
空载速度 No load speed: |
0.161sec/60°(62RPM)@7.4V |
| 空载电流 Runnig current(at no load) : | 140mA@7.4V |
|
堵转扭矩 Peak stall torque: |
19.5kg.cm@7.4V |
|
额定扭矩 Rated torque: |
6.5kg.cm@7.4V |
| 堵转电流 Stall current: | 2.8A@7.4V |
| 控制信号 Command signal: | Pulse width modification |
| 控制系统类型 Control System Type: | Digital comparator |
|
脉冲宽度范围Pulse width range |
500→2500 μsec |
|
中立位置Neutral position |
1500 μsec |
|
操作角度 Operating Travel |
180° (士5° ) (when 500~ 2500 μsec) |
| 死区宽度Dead band width | ≤4 μsec |
| 旋转方向Rotating direction | 逆时针 Counterclockwise(在500→2500 μsec) |
| 详细规格书下载Download detailed specifications: | |

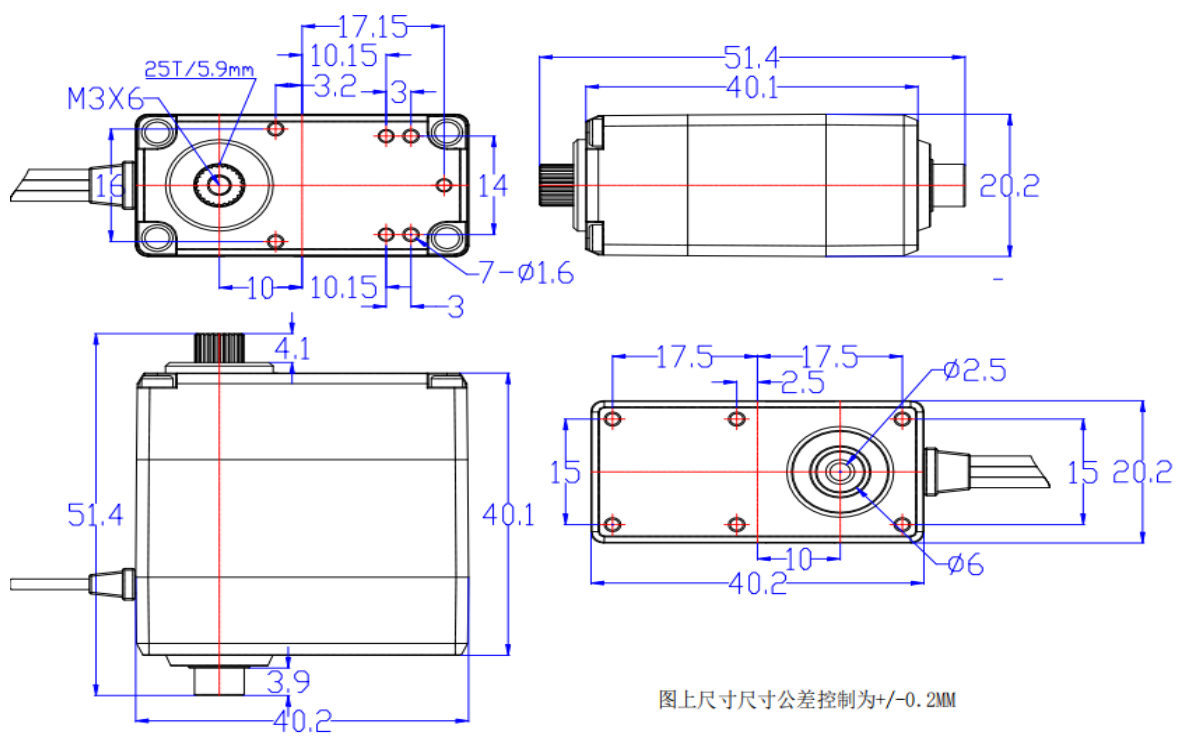

| 外形图 The Drawings: |
