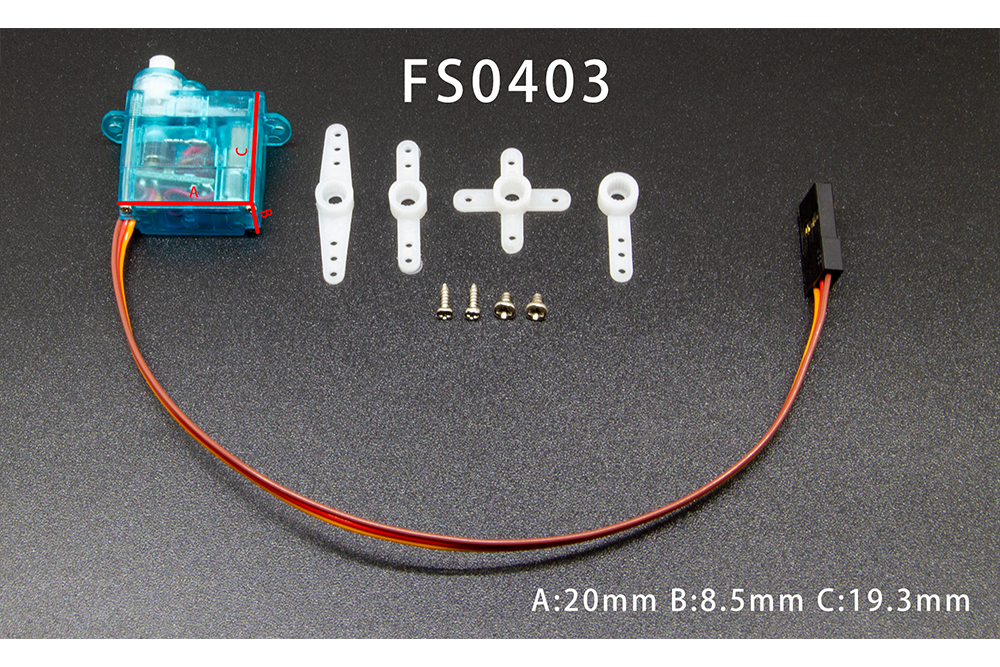

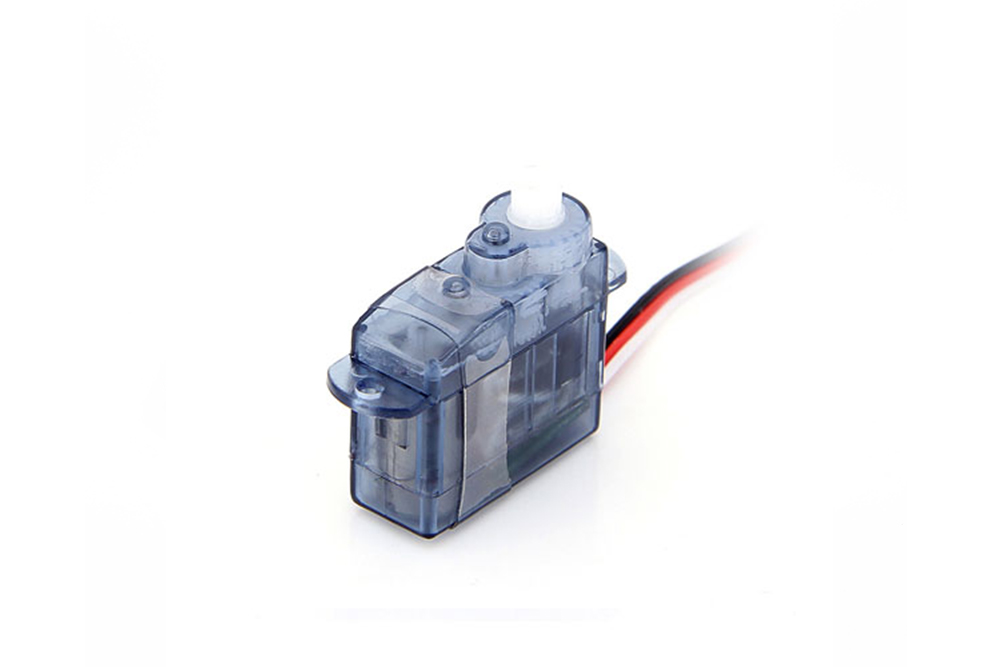

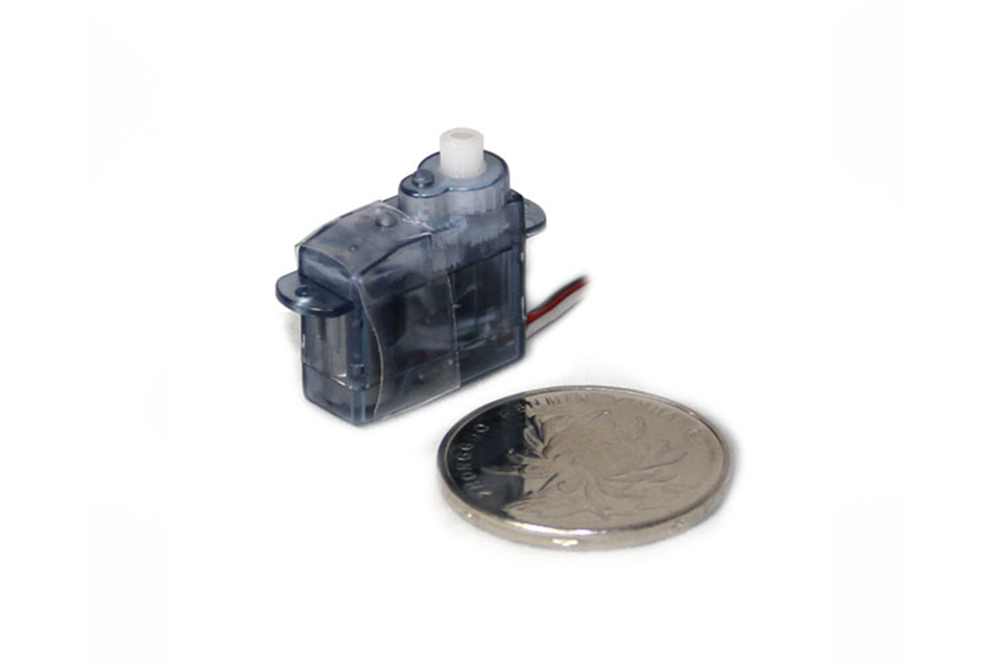

6V 0.7kg.cm analog servo FS0403
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FS0403
Structure Size:20*8.3*19.3mm
The Maximum 0.08sec/60degree@6V
The Stall Torque:0.7kg.cm@6V
The Rotation Degree:120°
Product details
|
型 号 Model： |
FS0403 |
|
产品名称 Product Name: |
6V 0.7kg模拟舵机/6V |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -15℃～70℃ |
|
尺寸 Size: |
A：20mm B：8.3mm C：19.3mm . |
|
重量 Weight: |
4.3g ±0.2 |
| 齿轮类型 Gear type: | Plastic Gear(Nylon & POM ) |
| 机构极限角度 Limit angle: |
No limit |
| 轴承 Bearing: | NO Ball bearings |

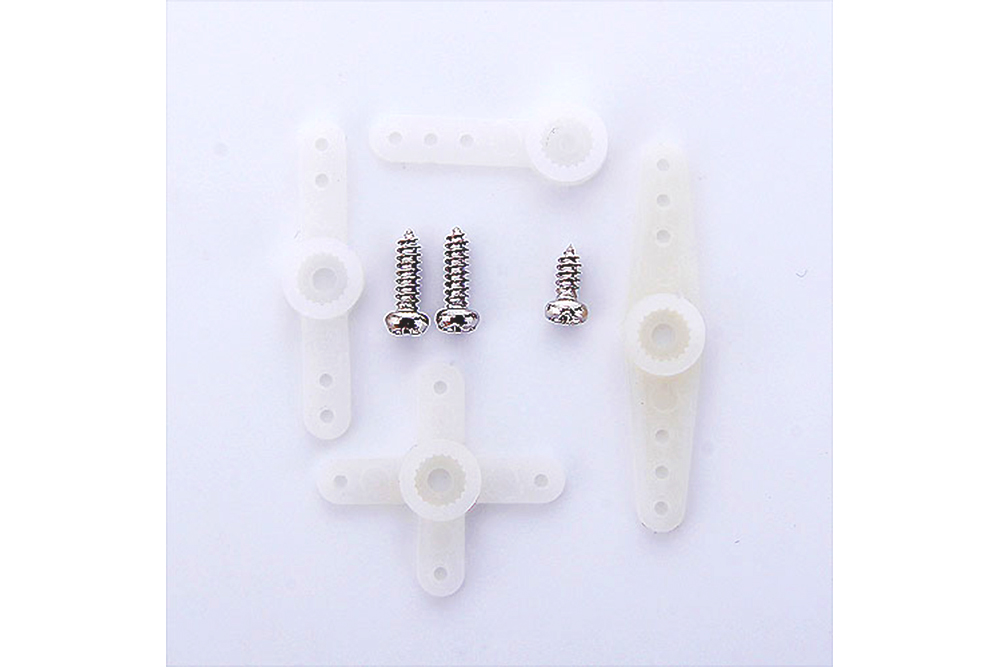

| 出力轴 Horn gear spline: | 20T |
| 外壳 Case: | Plastic |
| 舵机线 Connector wire: | 150mm ±5 mm |
| 马达 Motor: | Metal brush motor |
|
工作电压Operating Voltage Range: |
4.8-6V |
| 静态电流Idle current (at stopped) . | 6mA |
|
空载速度 No load speed: |
0.08sec/60degree(105RPM)@6V |
| 空载电流 Runnig current(at no load) : | 60mA@6V |
|
堵转扭矩 Peak stall torque: |
0.7kg.cm@6V |
|
额定扭矩 Rated torque: |
0.2.3kg.cm@6V |
| 堵转电流 Stall current: | 600mA@6V |
| 控制信号Command si gnal | Pulse width modification |
| 放大器类型Amplifier type | Analog comparator |
| 脉冲宽度范围Pulse width range | 900→2100 μsec |
| 中位位置Stop position | 1500（±5） µsec |
| 旋转角度Running degree | 120°(when 900～2100 µ sec) |
| 死区宽度Dead band width | 4 μsec |
| 旋转方向Rotating direction | 逆时针 (when 1000～2000 µsec) |
| 详细规格书下载Download detailed specifications: | |

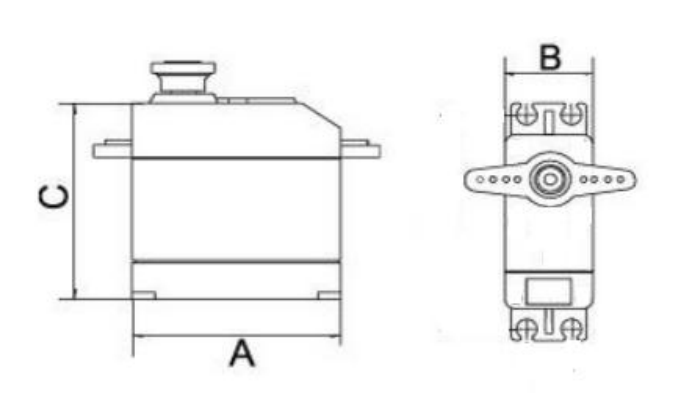

| 外形图 The Drawings: |
