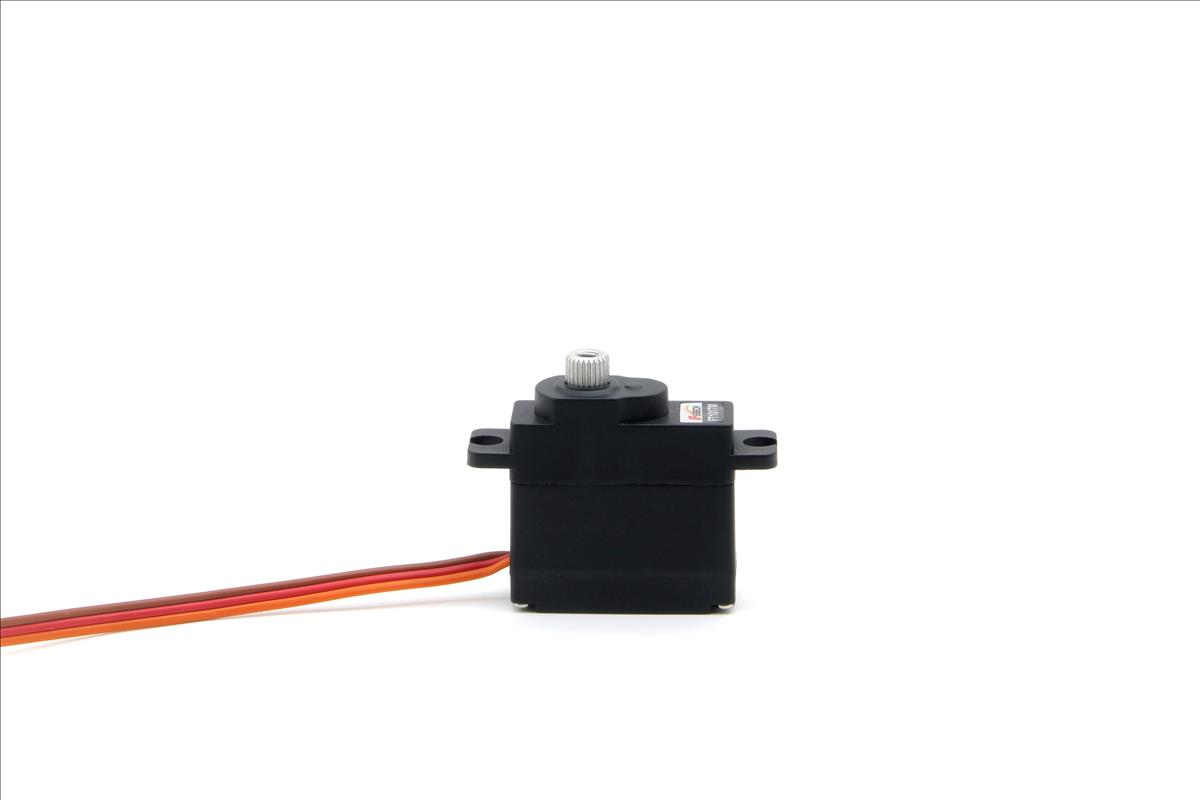

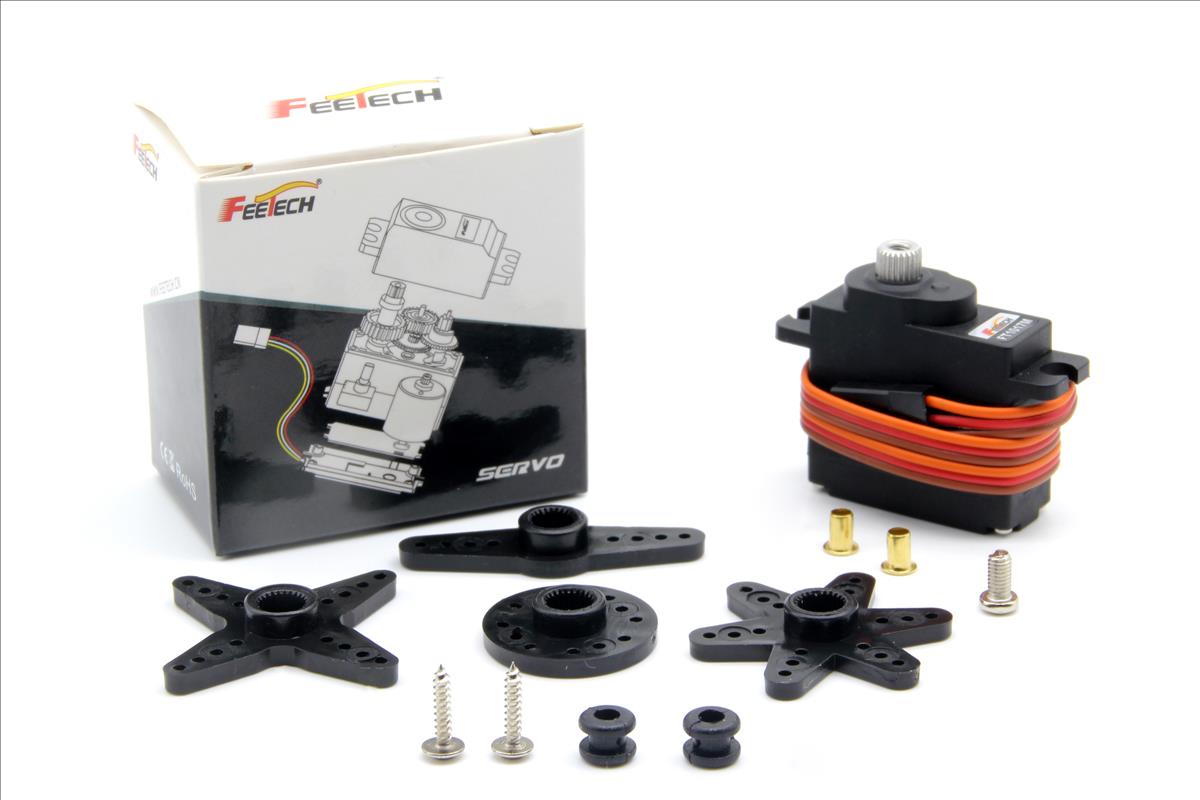

6V 5.5kg.cm180 Degree Digital Servo
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FT-1017-C001
Structure Size:12*29.8*29.6mm
The Maximum 0.142sec/60degree@6V
The Stall Torque:5.5 kg.cm@6V
The Rotation Degree:180°
Product details
|
型 号 Model： |
FT-1017-C001 |
|
产品名称 Product Name: |
6V |
| 存储温度 Storage Temperature Range | -30℃～70℃ |
| 运行温度 Operating Temperature Range: | -20℃～60℃ |
|
尺寸 Size: |
A：12mm B：29.8mm C：29.6mm . |
|
重量 Weight: |
18.5± 1g |
| 齿轮类型 Gear type: | Metal |
| 机构极限角度 Limit angle: |
No limit |
| 轴承 Bearing: |
NO |
| 出力轴 Horn gear spline: | 25T/5.9mm |
| 外壳 Case: | PA66+GF |

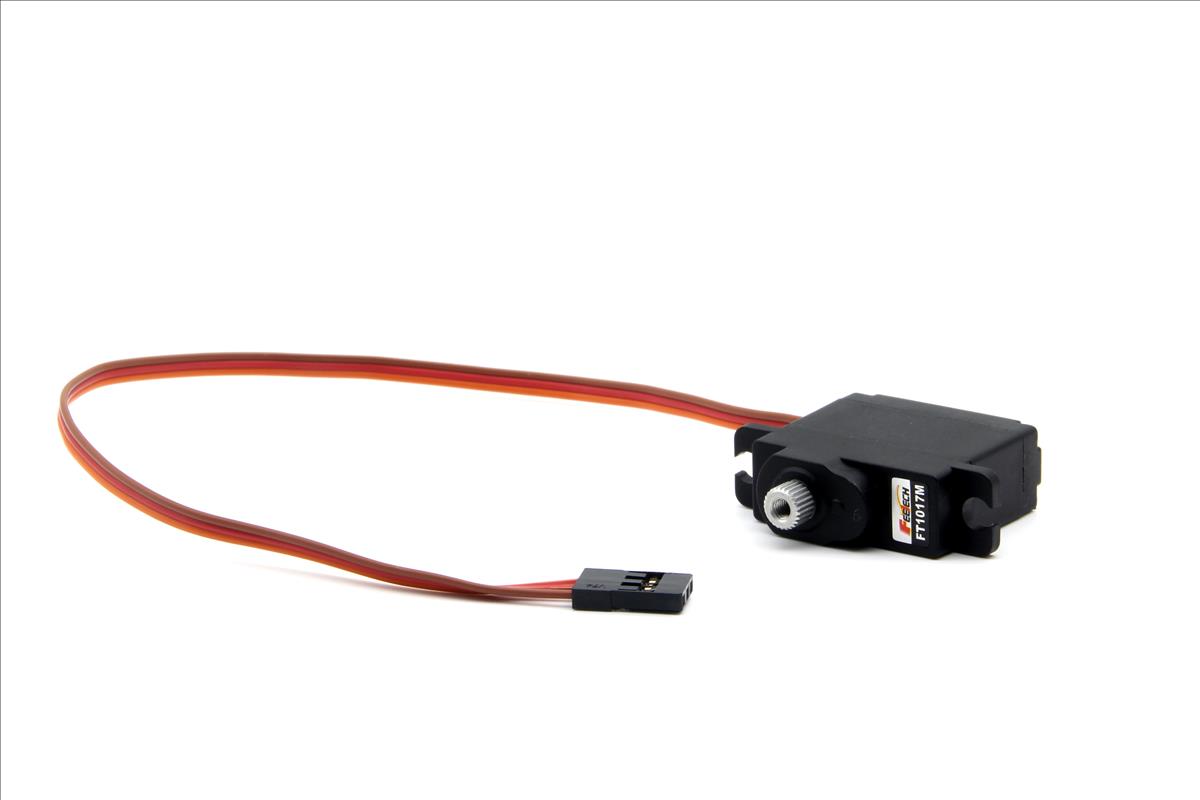

| 舵机线 Connector wire: | 25±1CM |
| 马达 Motor: | Core Motor |
|
工作电压Operating Voltage Range: |
4.5-8.4V |
| 静态电流Idle current (at stopped) . | 7mA@6V |
|
空载速度 No load speed: |
0.142sec/60°(70RPM)@6V |
| 空载电流 Runnig current(at no load) : | 80mA@6V |
|
堵转扭矩 Peak stall torque: |
5.5kg.cm@6V |
|
额定扭矩 Rated torque: |
1.35kg.cm@6V |
| 控制信号Command signal | Pulse width modification |
| 放大器类型Amplifier type | Digital Comparator |
| 脉冲宽度范围Pulse width range | 500→2500 μsec |
| 中位位置Stop position | 1500 μsec |
| 旋转角度Running degree | 180°(at 500→2500μsec) |
| 死区宽度Dead band width | ≤4 μsec |
| 旋转方向Rotating direction | 逆时针 Counterclockwise(在500→2500 μsec) |
| 详细规格书下载Download detailed specifications: | |

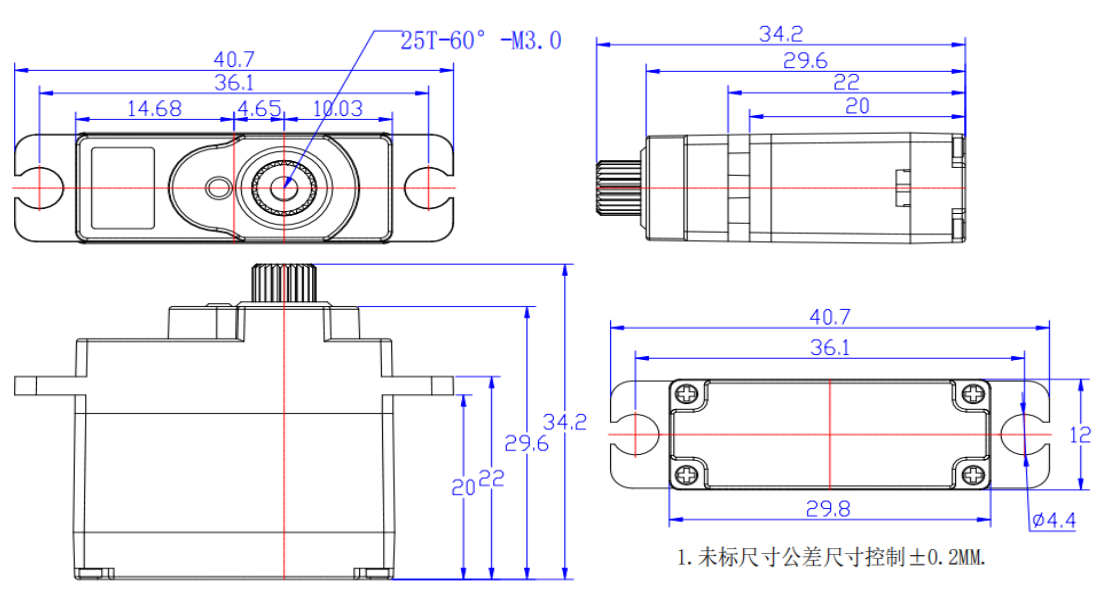

| 外形图 The Drawings: |
