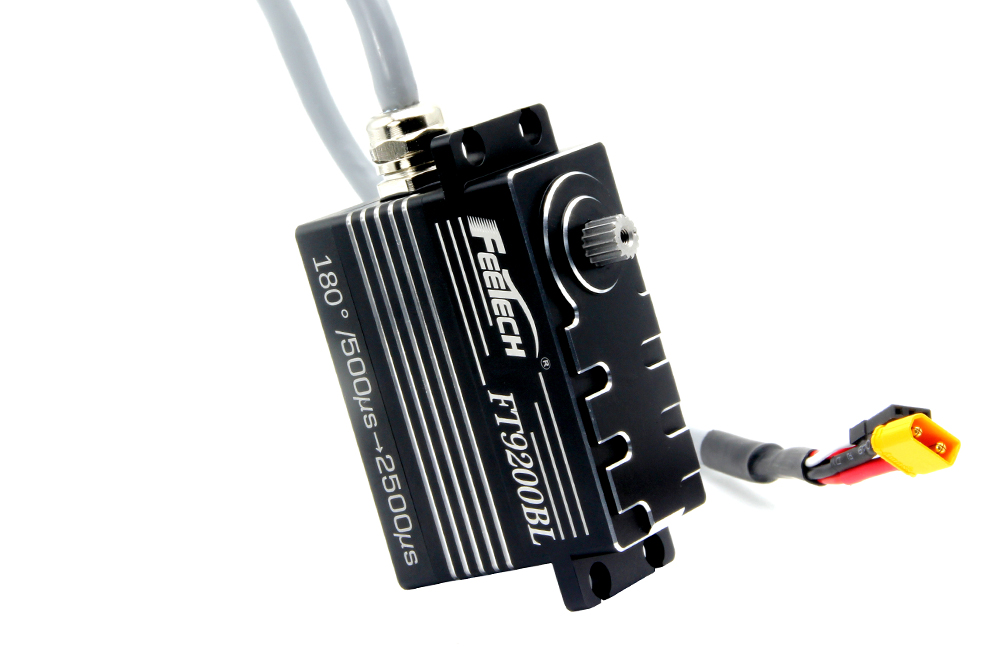

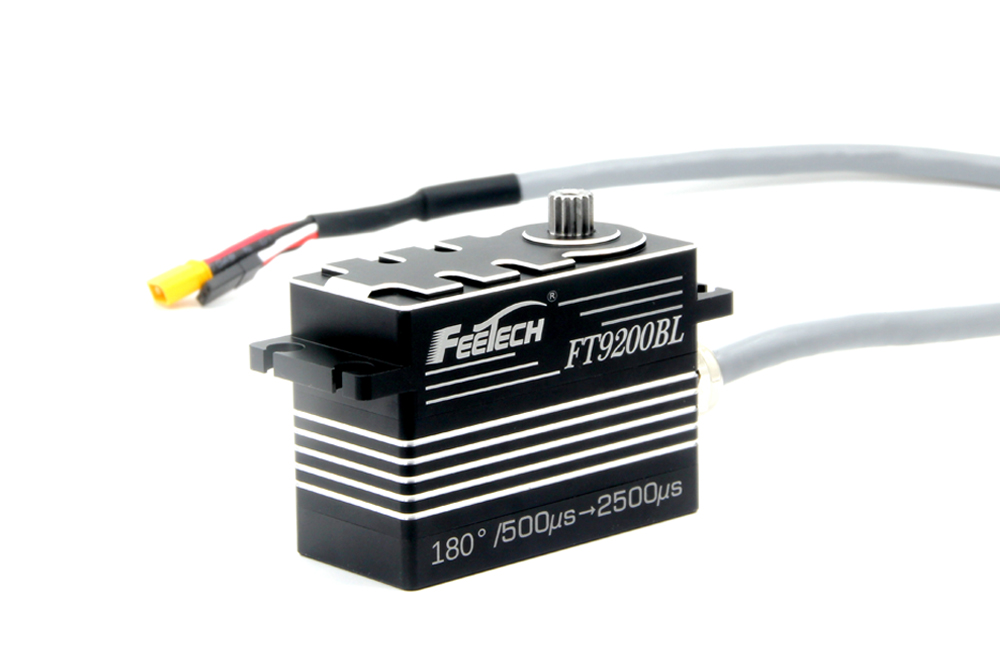

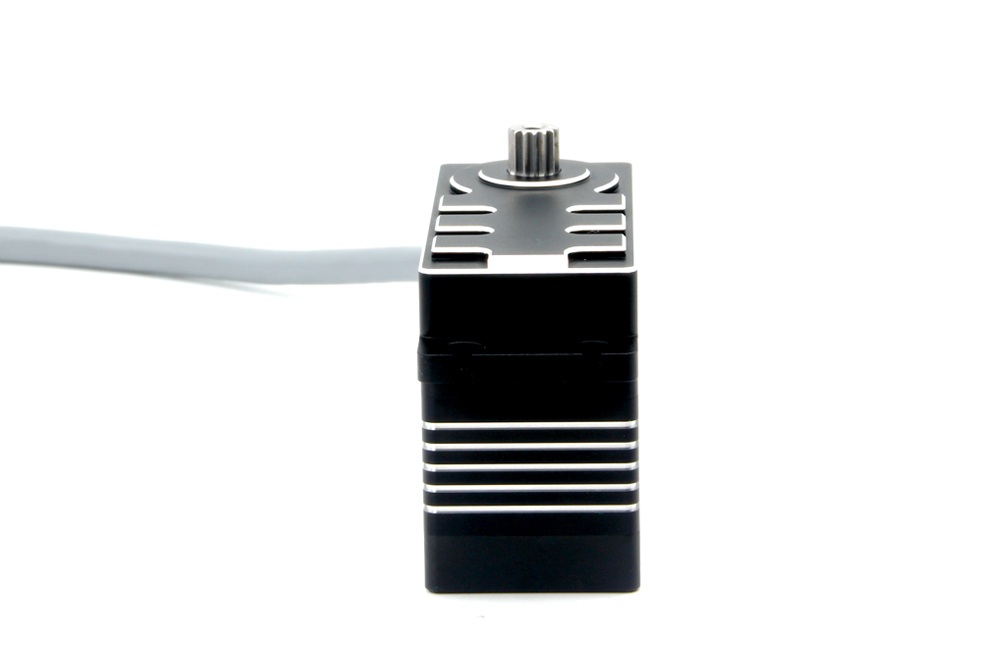

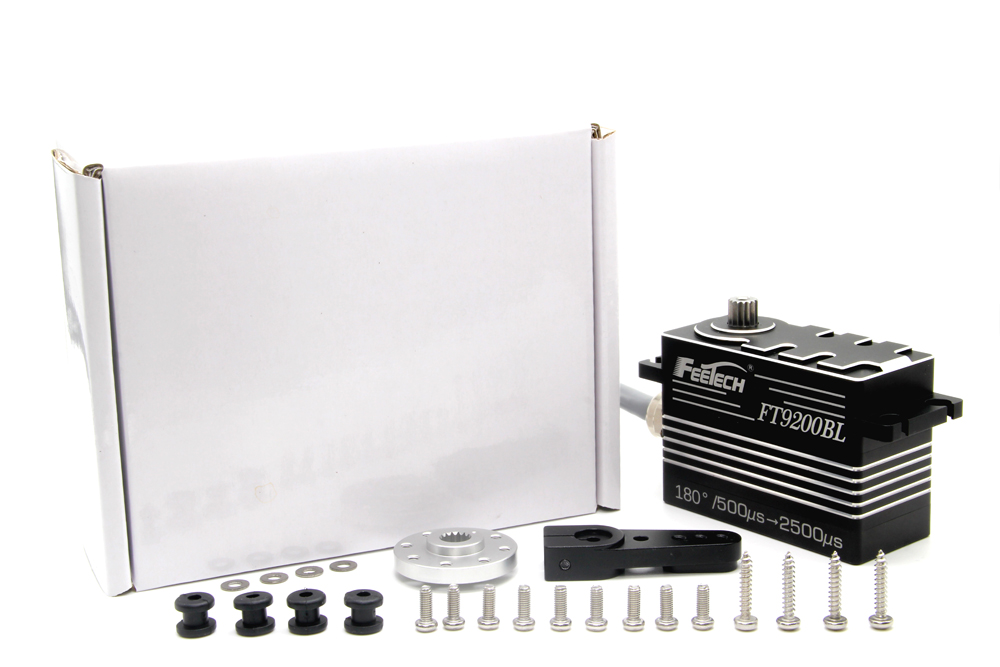

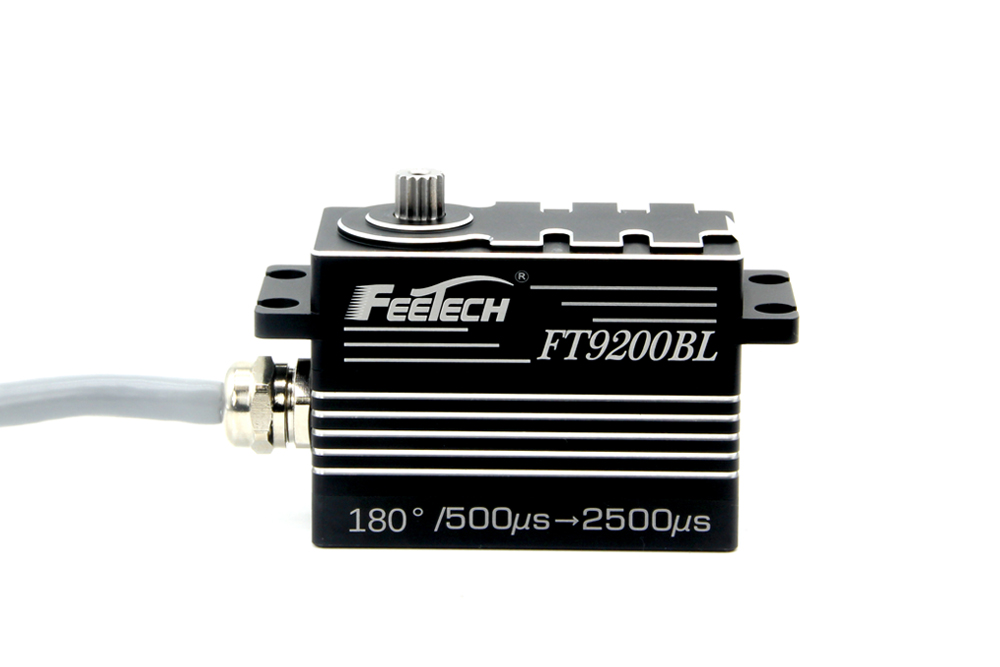

12V 200kg.cm180 degree steel gear brushless motor servo
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FT-9200-C001
Structure Size:65*30*48mm
The Maximum Speed:0.25sec/60°@12V
The Stall Torque:200kg. cm@12V
The Rotation Degree:180°
Product details
|
型 号 Model： |
FT-9200-C001 |
|
产品名称 Product Name: |
12V 200kg.cm180°舵机/12V 200KG 180 Degree Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -20℃～60℃ |
|
尺寸 Size: |
A：65mm B：30mm C: 48mm |
|
重量 Weight: |
250g± 5g |
| 齿轮类型 Gear type: |
钢 Steel |
| 机构极限角度 Limit angle: |
NO limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: |
15T/7.6mm |
| 减速比Gear Ratio： | 1/399 |
| 外壳 Case: | Alumi num |
| 舵机线 Connector wire: | 47±2CM |
| 马达 Motor: |
Brushless Motor |
|
工作电压Operating Voltage Range: |
9-12.6V |
| 静态电流Idle current (atstopped) |
40MA@12V |
|
空载速度 No load speed: |
0.25sec/60°(40RPM)@12V |
| 空载电流 Runnig current(at no load) : | 320mA@12V |
|
堵转扭矩 Peak stall torque: |
200kg.cm@ 12V |
|
额定扭矩 Rated torque: |
66.6kg.cm@12V |
| 堵转电流 Stall current: | 10.2A@12V |
| 控制信号Command si gnal | Pulse width modulation |
| 控制系统类型 Control System Type | Digital comparator |
| 脉冲宽度范围Pulse width range | 500~2500 μ sec |
| 中立位置Stop position | 1500 μ sec |
| 操作角度Running degree |
180±5°(at 500→2500μsec) |
| 死区宽度Dead band width | ≤4 μ sec |
| 旋转方向Rotating direction | 逆时针 Counterclockwi se (在500→2500 μ sec) |
| 详细规格书下载Download detailed specifications: | |
| 电子保护 Electronic Protection | 堵转8秒/Stall 8sec |
| 外形图 The Drawings: |
