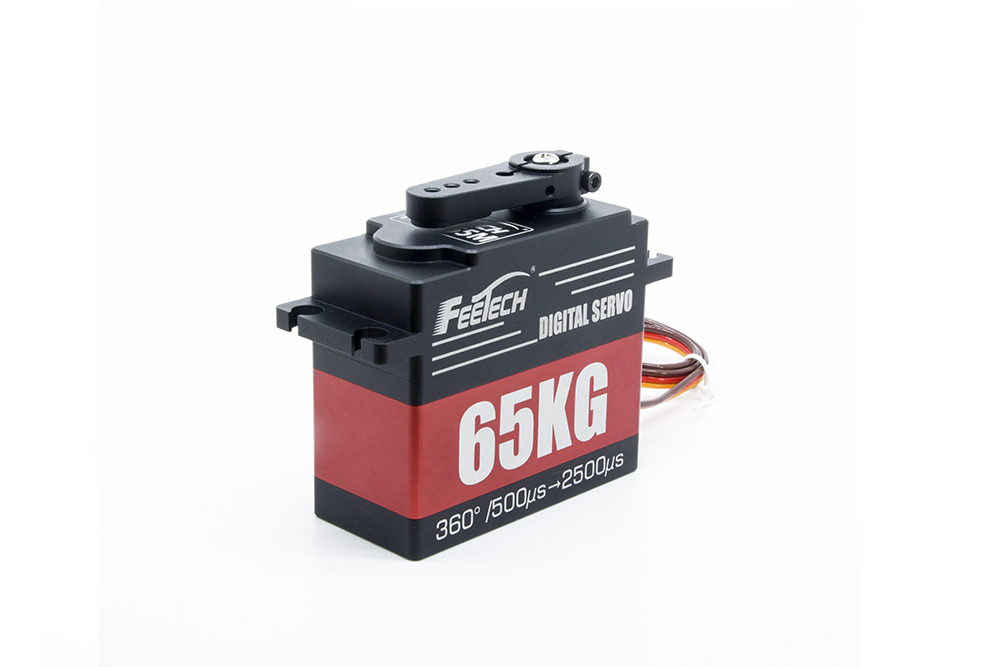

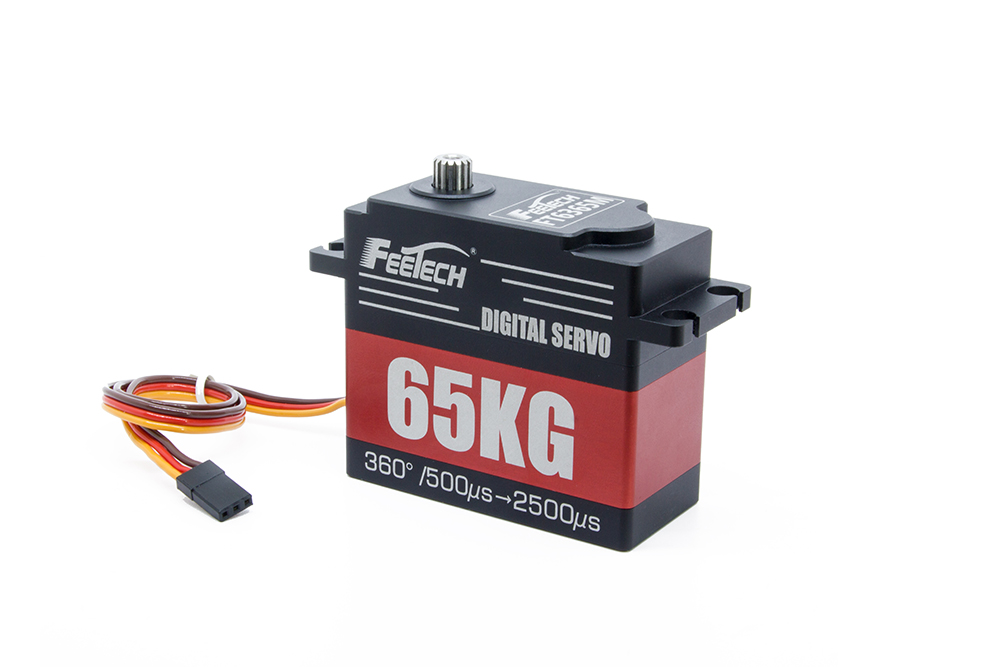

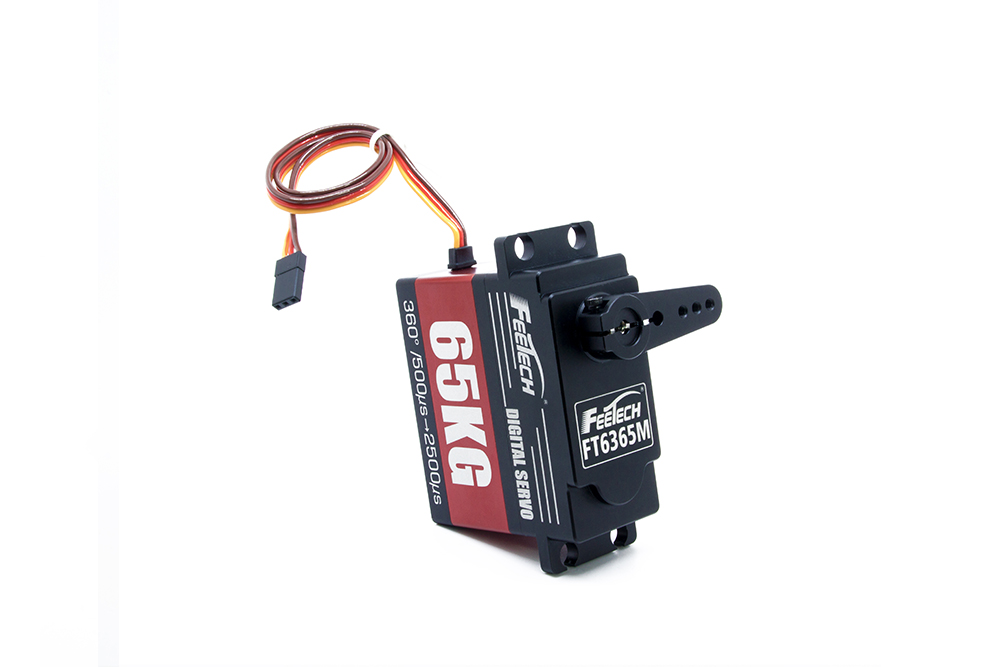

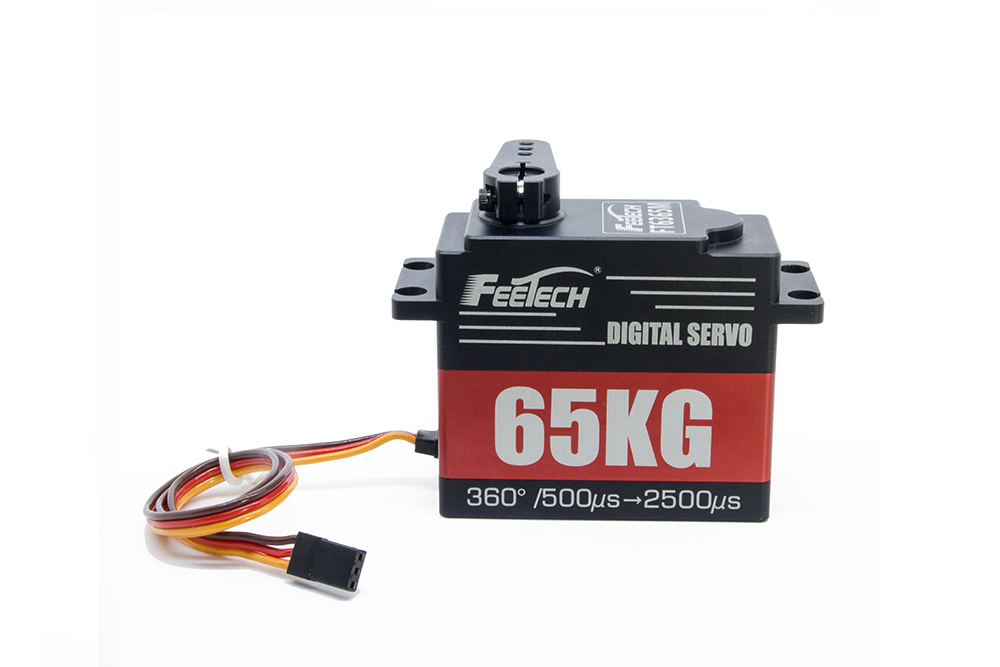

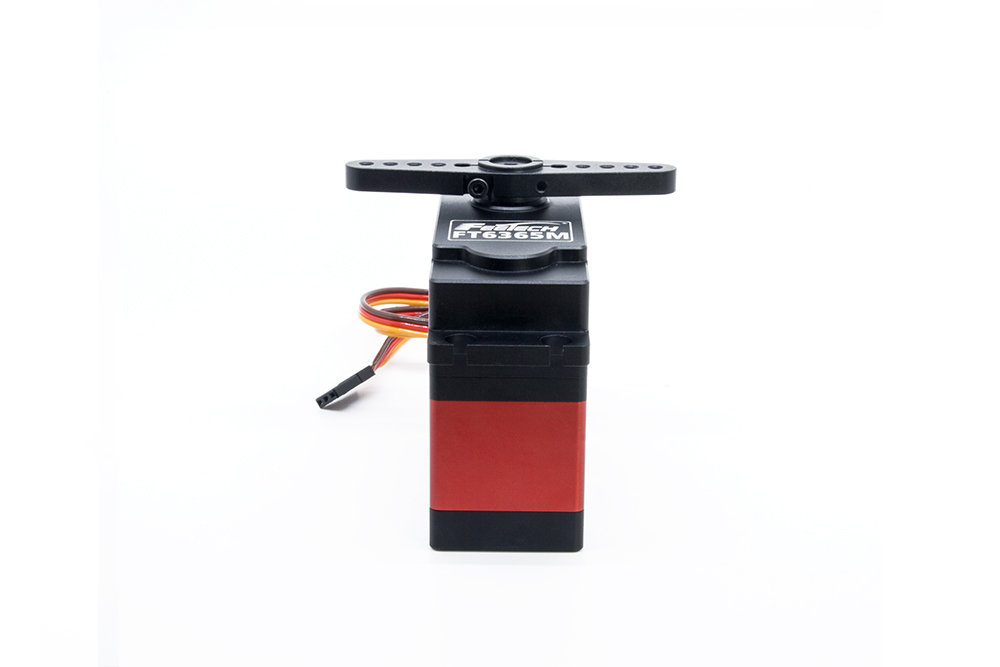

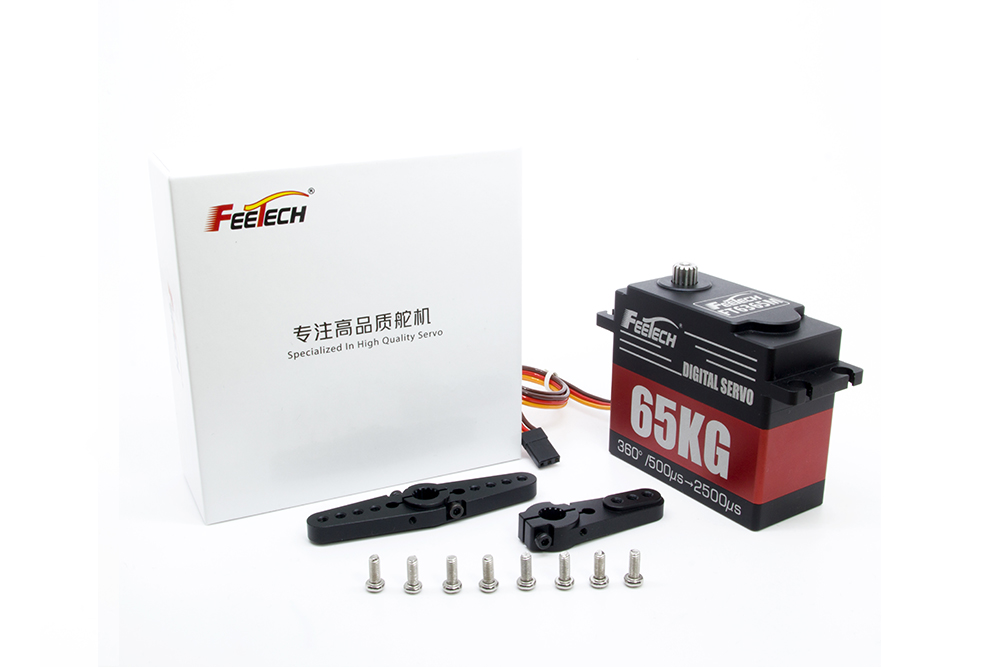

7.4V 65KG 360 Degree Magnetic Encoders Steel Gear Servo
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FT-6365-C001
Structure Size:65*30*58.4mm
The Maximum Speed:0.227sec/60°@7.4V
The Stall Torque:65kg. cm@7.4V
The Rotation Degree:360°
Product details
|
型 号 Model： |
FT-6365-C001 |
|
产品名称 Product Name: |
7.4V 65kg.cm360°舵机/7.4V 65KG 360 Degree Magnetic Encoders Steel Gear Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -20℃～60℃ |
|
尺寸 Size: |
A：65mm B：30mm C: 58.4mm |
|
重量 Weight: |
235.2g± 1g |
| 齿轮类型 Gear type: |
钢 Steel |
| 机构极限角度 Limit angle: |
NO limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |

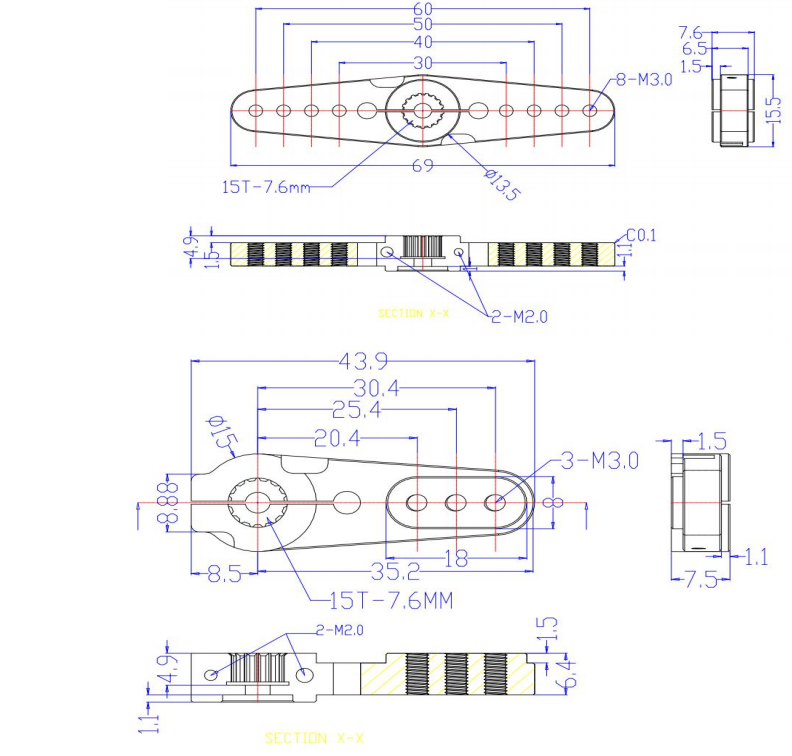

| 出力轴 Horn gear spline: |
15T/7.6mm |
| 减速比Gear Ratio： | 1/305 |
| 外壳 Case: | Alumi num |
| 舵机线 Connector wire: | 23CM |
| 马达 Motor: |
Core Motor |
|
工作电压Operating Voltage Range: |
4.8-8.4V |
| 静态电流Idle current (atstopped) |
30MA@7.4V |
|
空载速度 No load speed: |
0.227sec/60° (44RPM)@7.4V |
| 空载电流 Runnig current(at no load) : | 300mA@7.4V |
|
堵转扭矩 Peak stall torque: |
65kg.cm@7.4V |
|
额定扭矩 Rated torque: |
21.5kg.cm@7.4V |
| 堵转电流 Stall current: | 10.2A@7.4V |
| 控制信号Command si gnal | Pulse width modulation |
| 控制系统类型 Control System Type | Digital comparator |
| 脉冲宽度范围Pulse width range | 500~2500 μ sec |
| 中立位置Stop position | 1500 μ sec |
| 操作角度Running degree |
360°(at 500→2500μsec) |
| 死区宽度Dead band width | ≤4 μ sec |
| 旋转方向Rotating direction | 逆时针 Counterclockwi se (在1500→2500 μ sec) |
| 详细规格书下载Download detailed specifications: | |
| 电子保护 Electronic Protection | 堵转4秒/Stall 4sec |
| 温度保护 Temperature protection | >70°C |

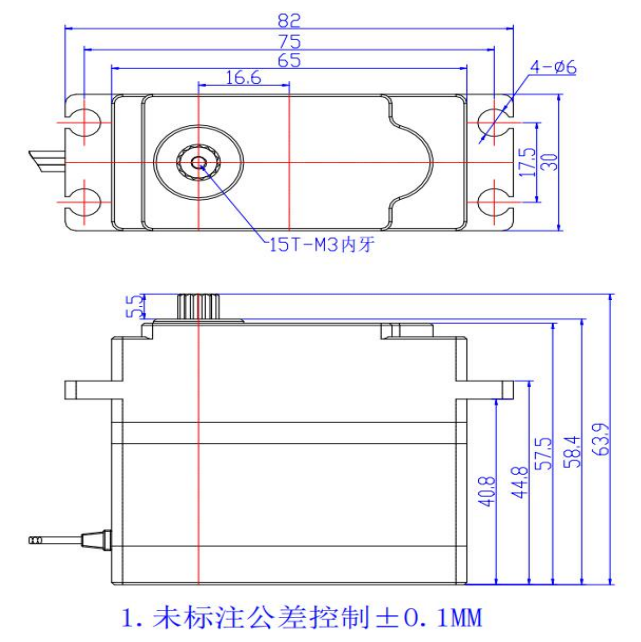

| 外形图 The Drawings: |
