35kg.cm digital 180 degree steel gear steering gear
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FT5330M
Structure Size:55*20*43mm
The Maximum Speed:0.192sec/60°@7.4V
The Stall Torque:35.5kg.cm@7.4V
The Rotation Degree:180°
Product details
|
型 号 Model： |
FT5330M |
|
产品名称 Product Name: |
7.4V 35kg.cm数码180度铝中壳钢齿轮铁芯舵机/7.4V 35kg.cm digital 180 degree aluminum middle shell steel gear iron core servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -20℃～60℃ |
|
尺寸 Size: |
A：55mm B：20mm C:43mm |
|
重量 Weight: |
67土1g |
| 齿轮类型 Gear type: |
钢 Steel |
| 机构极限角度 Limit angle: |
NO limit |
| 轴承 Bearing: | Ball bearings |
| 出力轴 Horn gear spline: |
25T/5.9mm |
| 摆臂 Horn type: | Plastic,POM |
| 外壳 Case: | PA+A lumi num |
| 舵机线 Connector wire: | 30CM |
| 马达 Motor: |
Core Motor |
|
工作电压Operating Voltage Range: |
6V-7.4V |
| 静态电流Idle current (at stopped) . |
6MA@7.4V |
|
空载速度 No load speed: |
0. 192sec/60°@7.4V |
| 空载电流 Runnig current(at no load) : | 180mA@7.4V |
|
堵转扭矩 Peak stall torque: |
35.5kg.cm@7.4V |
|
额定扭矩 Rated torque: |
11.8kg.cm@7.4V |
| 堵转电流 Stall current: | 3.9A@7.4V |
| 控制信号Command si gnal | Pulse width modification |
| 放大器类型Amplifier type | Digital compara tor |
| 脉冲宽度范围Pulse width range | 500~2500usec |
| 中立位置Stop position | 1500 sec |
| 旋转角度Running degree |
180° Continuous Rotation |
| 死区宽度Dead band width | ≤4 μsec |
| 旋转方向Rotating direction | 逆时针Counterclockwi se (在1 500→2000μ sec) |
| 详细规格书下载Download detailed specifications: | |

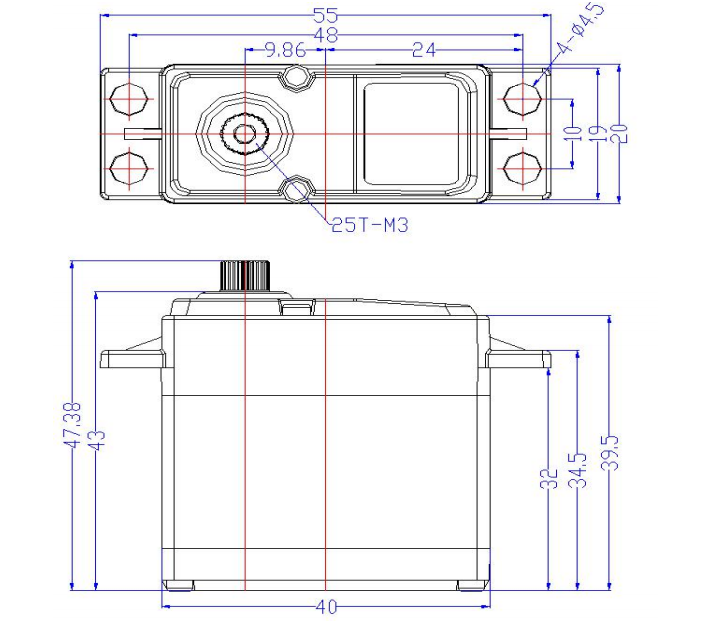

| 外形图 The Drawings: |
