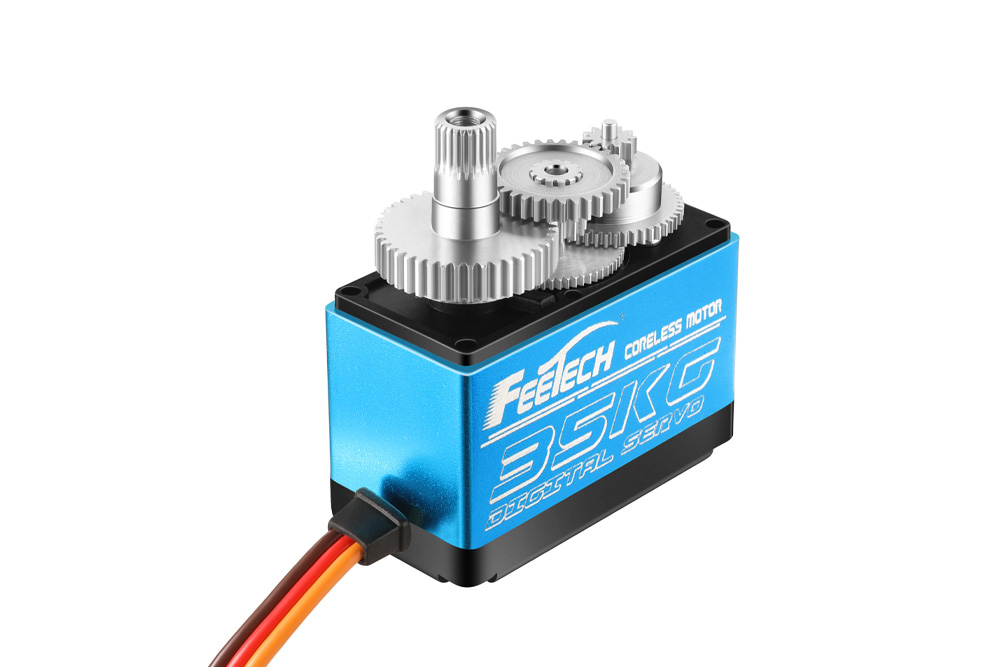

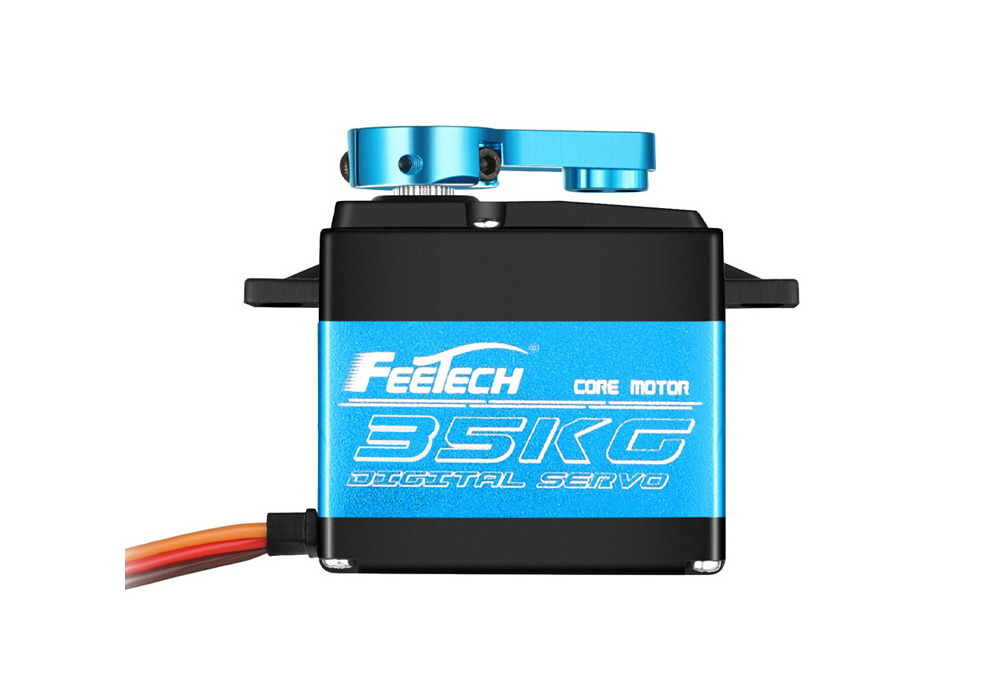

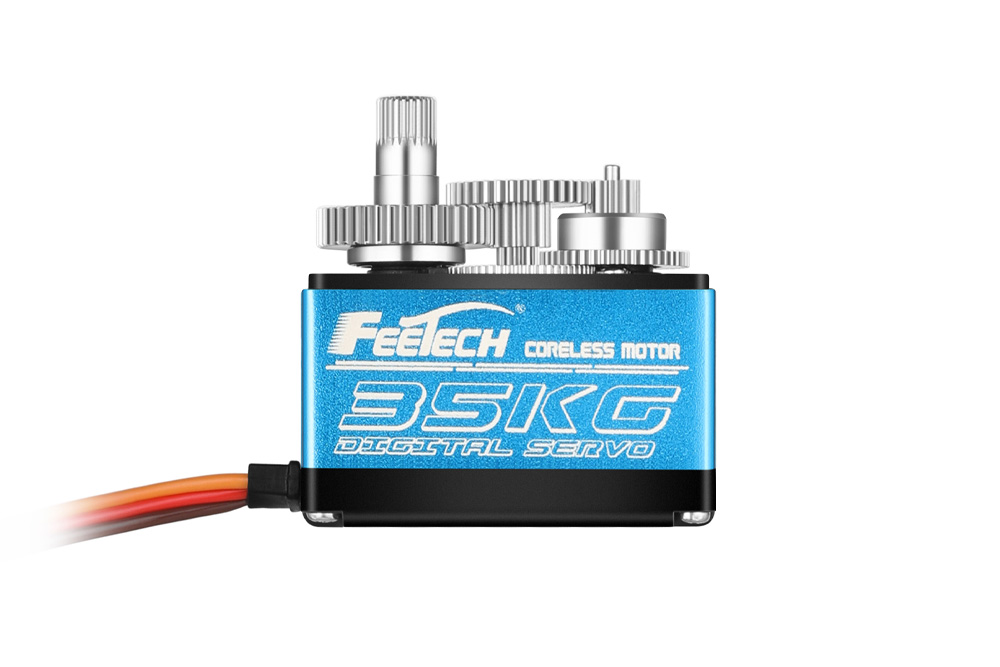

7.4V 35kg.cm digital servo
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FI7635M
Structure Size:55*20*38mm
The Maximum Speed:0.192sec/60°@7.4V
The Stall Torque:35. 5kg. cm@7.4V
The Rotation Degree:180°
Product details
|
型 号 Model： |
FI7635M |
|
产品名称 Product Name: |
7.4V 35kg.cm数码180度铝中壳铝齿轮空芯杯舵机/7.4V 35kg.cm Digital 180 Degree Aluminum Middle Shell Aluminum Gear Air Core Cup Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -20℃～60℃ |
|
尺寸 Size: |
A：55mm B：20mm C:38mm |
|
重量 Weight: |
65土1g |
| 齿轮类型 Gear type: |
Metal Gear |
| 机构极限角度 Limit angle: |
NO limit |
| 轴承 Bearing: | Ball bearings |
| 出力轴 Horn gear spline: |
25T/5.9mm |
| 摆臂 Horn type: | Plastic,POM |
| 外壳 Case: | PA+A lumi num |
| 舵机线 Connector wire: | 30CM |
| 马达 Motor: |
Corelss Motor |
|
工作电压Operating Voltage Range: |
6V-7.4V |
| 静态电流Idle current (atstopped) |
6MA@7.4V |
|
空载速度 No load speed: |
0.138sec/60°@7.4V |
| 空载电流 Runnig current(at no load) : | 150mA@7.4V |
|
堵转扭矩 Peak stall torque: |
35.5kg.cm@7.4V |
|
额定扭矩 Rated torque: |
11.8kg.cm@7.4V |
| 堵转电流 Stall current: | 3.5mA@7.4V |
| 控制信号Command si gnal | Pulse width modification |
| 放大器类型Amplifier type | Digitalcompara tor |
| 脉冲宽度范围Pulse width range | 500~2500usec |
| 中立位置Stop position | 1500μ sec |
| 旋转角度Running degree |
180° .at500- > 2500 μ sec) |
| 死区宽度Dead band width | ≤4.μ sec |
| 旋转方向Rotating direction | 逆时针Counterclockwi se (在1500→2000μ sec) |
| 详细规格书下载Download detailed specifications: |
|

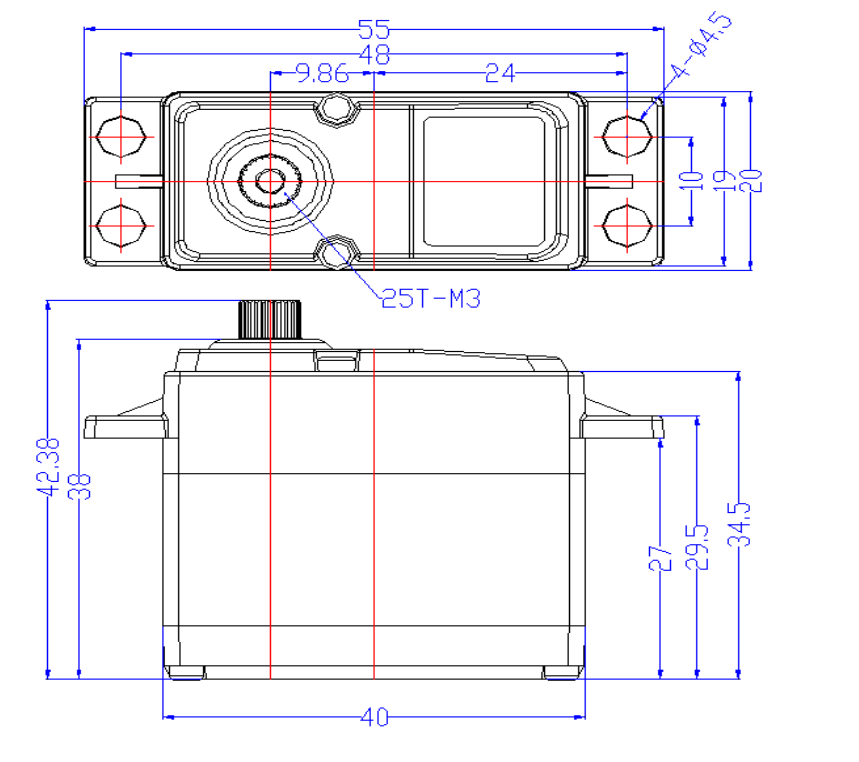

| 外形图 The Drawings: |
