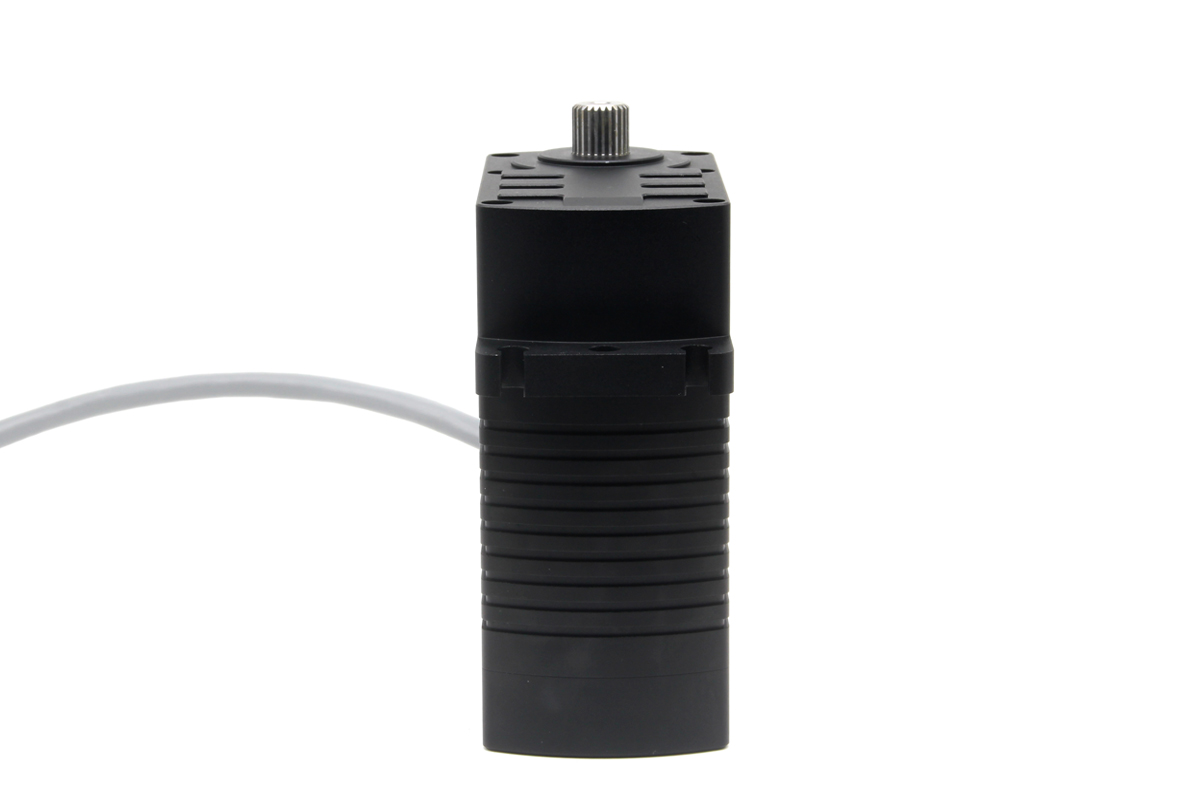

24V 750kg.cm Steel Gear Brushless Motor 180 Degree Servo
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FT-750B-C001
Structure Size:90*48*109.3mm
The Maximum Speed:0.385sec/60°@24V
The Stall Torque:750kg. cm@24V
The Rotation Degree:180°
Product details
|
型 号 Model： |
FT-750B-C001 |
|
产品名称 Product Name: |
24V 750kg.cm180°舵机/24V 750KG 180 Degree Servo |
| 存储温度 Storage Temperature Range | -40℃～80℃ |
| 运行温度 Operating Temperature Range: | -40℃～60℃ |
|
尺寸 Size: |
A：90mm B：48mm C: 109.4mm |
|
重量 Weight: |
1050±5g |
| 齿轮类型 Gear type: |
钢 Steel |
| 机构极限角度 Limit angle: |
NO limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |

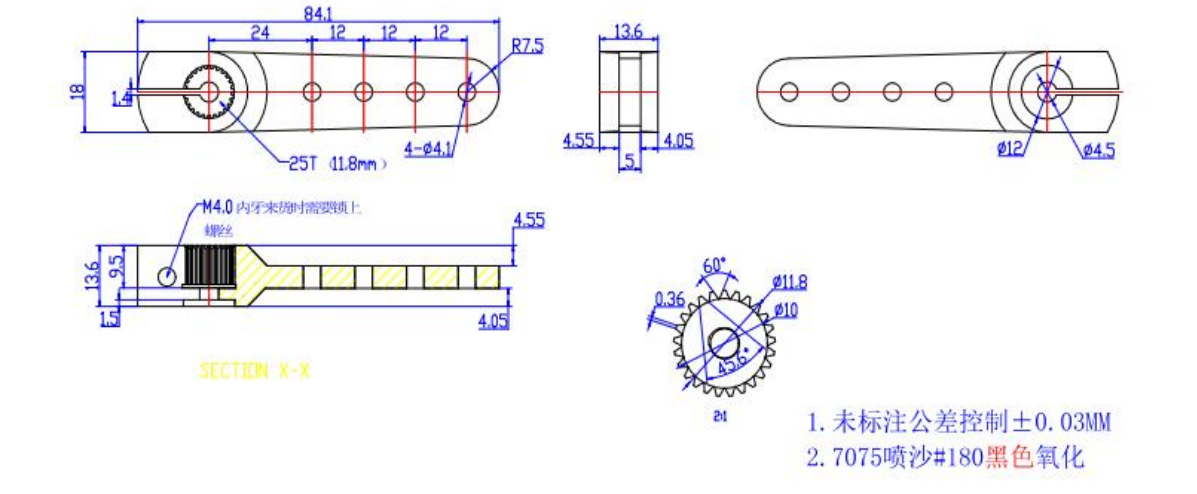

| 出力轴 Horn gear spline: |
25T(11.8mm) |
| 减速比Gear Ratio： | 1/252 |
| 外壳 Case: | Aluminum |
| 舵机线 Connector wire: | 43±1CM |
| 马达 Motor: |
Brushless Motor |
|
工作电压Operating Voltage Range: |
16-28V |
| 静态电流Idle current (atstopped) |
30mA@24V |
|
空载速度 No load speed: |
0.385sec/60°(26RPM)@24V |
| 空载电流 Runnig current(at no load) : | 360mA@24V |
|
堵转扭矩 Peak stall torque: |
750kg.cm@ 24V |
|
额定扭矩 Rated torque: |
250kg.cm@24V |
| 堵转电流 Stall current: | 15.5A@24V |
| 控制信号Command si gnal | Pulse width modulation |
| 控制系统类型 Control System Type | Digital comparator |
| 脉冲宽度范围Pulse width range | 500~2500 μ sec |
| 中立位置Stop position | 1500 μ sec |
| 操作角度Running degree |
180±5°(at 500→2500μsec) |
| 死区宽度Dead band width | ≤4 μ sec |
| 旋转方向Rotating direction | 顺时针 Clockwise(在1500→2000μsec) |
| 详细规格书下载Download detailed specifications: | |
| 产品2D外形图Product 2D Drawing | |
| 产品3D外形图Product 3D Drawing | |

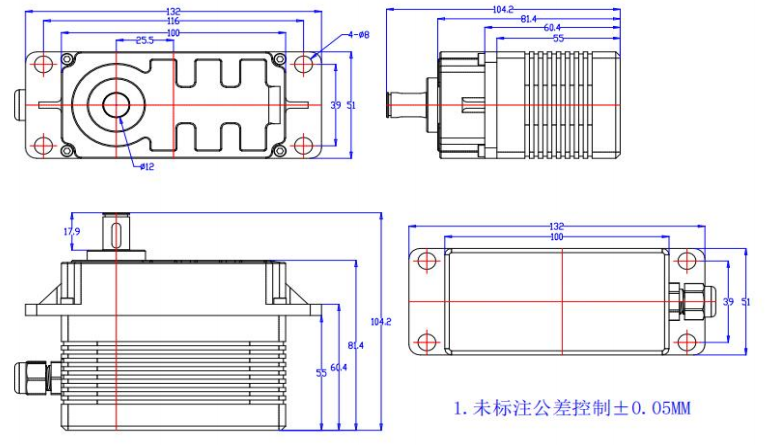

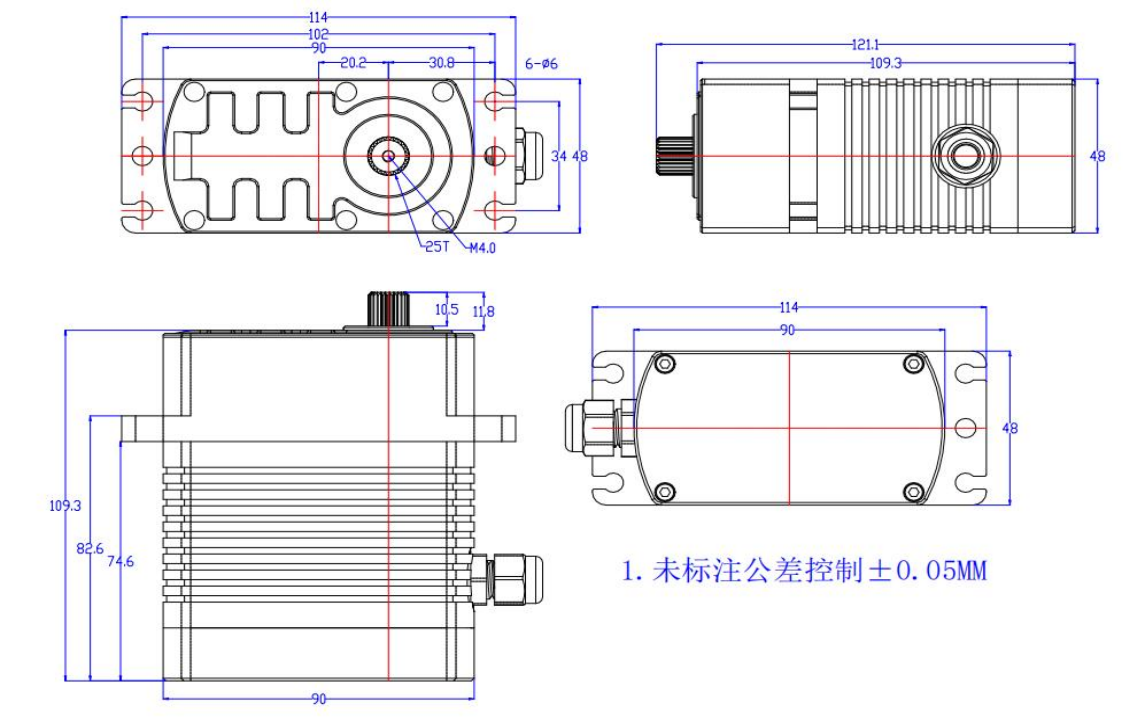

| 外形图 The Drawings: |
